Detector semnal satelit DVB-S/S2 DSS Satfinder PROMAX SATHUNTER+ aliniere antena

Cod: DVB-S/S2 DSS Satfinder SATHUNTER+




Brosura produs PDF, 0.49 Mb


Descriere

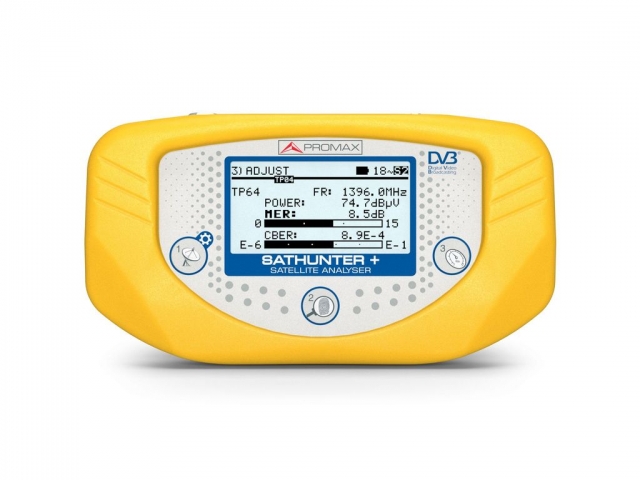

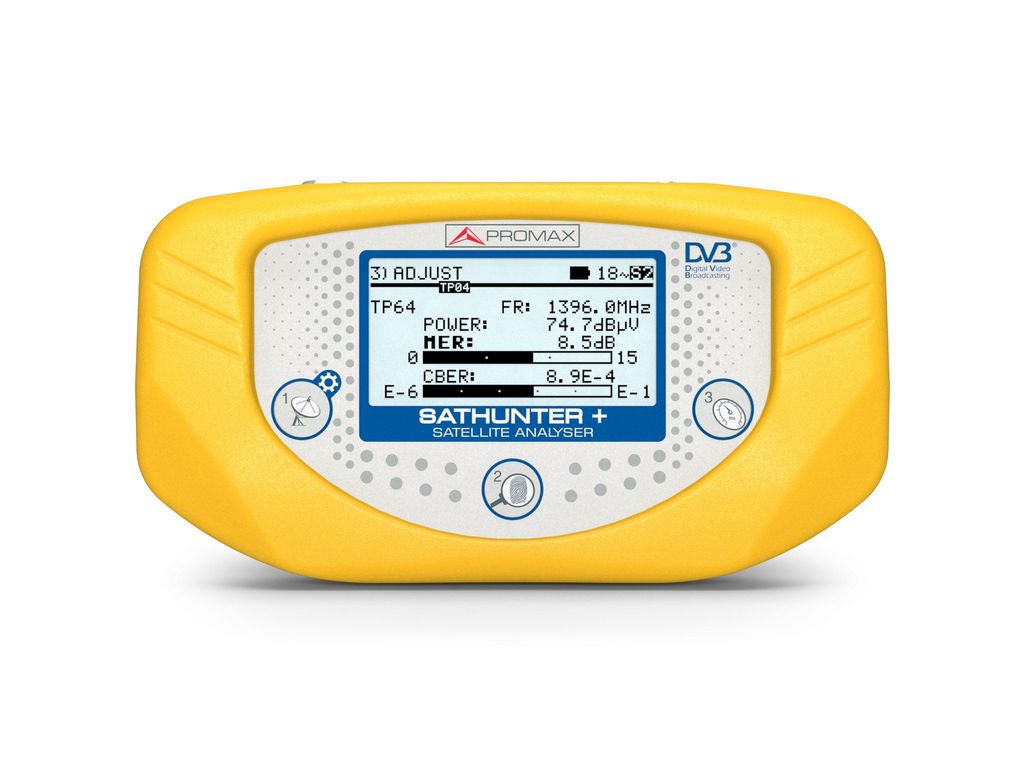

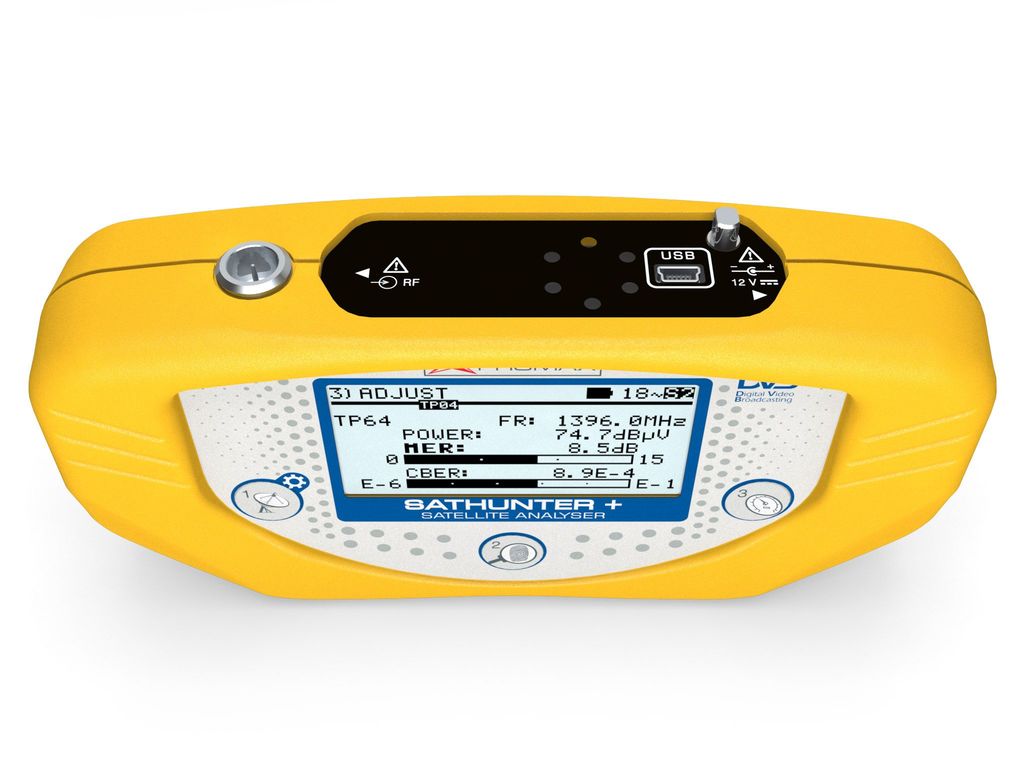

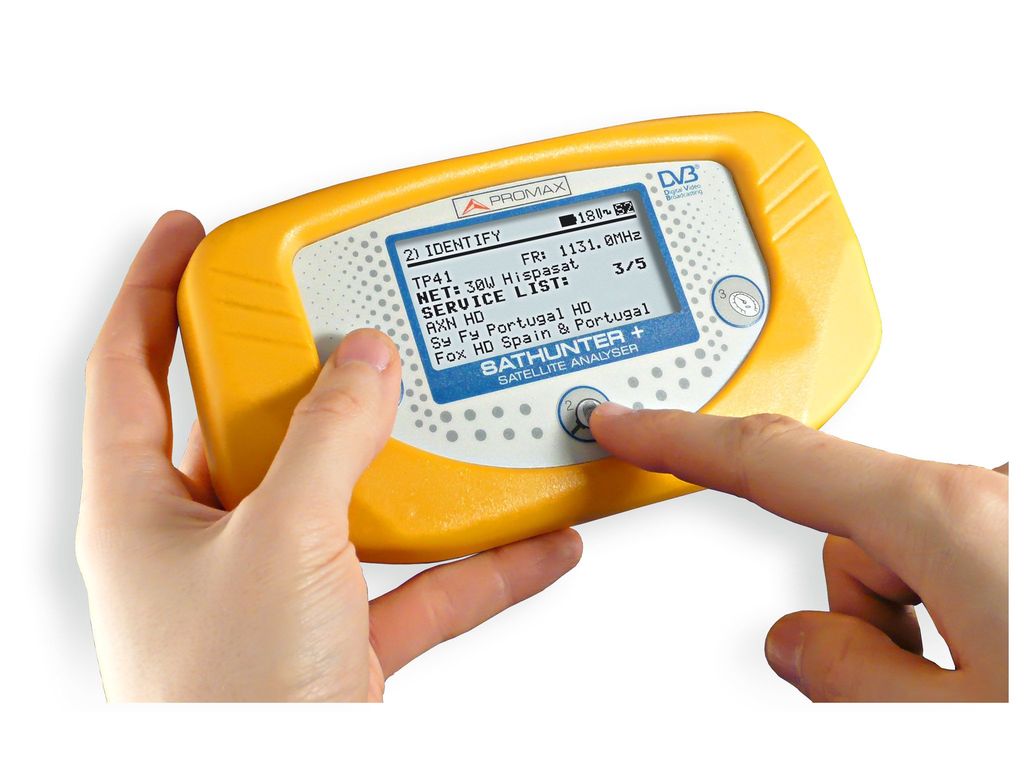

SATHUNTER+: Detector de sateliți DVB-S/S2 și DSS
Conceput pentru instalarea sistemelor Direct to Home, complet automat și extrem de ușor de utilizat.

SATHUNTER+ de la PROMAX este analizorul de spectru portabil și instrumentul de măsurare a intensității câmpului pentru alinierea și instalarea antenei satelitare. Conceput ca un instrument de înaltă precizie pentru instalatorii de telecomunicații, acest dispozitiv se remarcă prin funcționarea complet automată, compatibilă cu standardele DVB-S, DVB-S2 și DSS.

Datorită tehnologiei sale avansate de detectare, SATHUNTER+ elimină complexitatea terenului: în timp ce aliniază antena, instrumentul identifică instantaneu satelitul, afișând poziția sa orbitală și lista de servicii prin citirea tabelelor de rețea. Este soluția ideală pentru piața infrastructurii TV prin satelit, permițând utilizatorilor să lucreze cu modulații QPSK și 8PSK cu viteză maximă.

Robustețea și ușurința în utilizare îl poziționează ca punct de referință în categoria sa pentru implementarea și întreținerea sistemelor de recepție satelit. Cu o interfață intuitivă și detectare a semnalului în timp real, SATHUNTER+ garantează o aliniere perfectă, optimizând fluxul de lucru și asigurând o calitate maximă a semnalului pentru utilizatorul final. Un standard de eficiență tehnologică pentru profesionistul secolului XXI.

PROCES ÎN 3 PAȘI Detectare, identificare, reglare fină a sateliților
SATELIȚI 50 maxim
RATĂ SIMBOL (DVB-S) 2 până la 45 Mbauds
RATĂ SIMBOL (DVB-S2)
QPSK De la 2 la 45 Mbauds
8PSK De la 2 la 45 Mbauds
RATĂ SIMBOL (DSS) 22 Mbauds
BATERII Baterii Li-Ion de lungă durată
CONFIGURAȚIE Include CD-ROM și cablu USB pentru modificarea configurației


Accesorii standard

ACCESORII Adaptor de alimentare de la rețea, Adaptor brichetă auto, Adaptoare de la F la BNC/DIN/F,
Cablu de alimentare, Cablu conector USB 2.0, Baterie reîncărcabilă Li-Ion,
Valiza de transport, Curea de transport, Husă (opțională)
