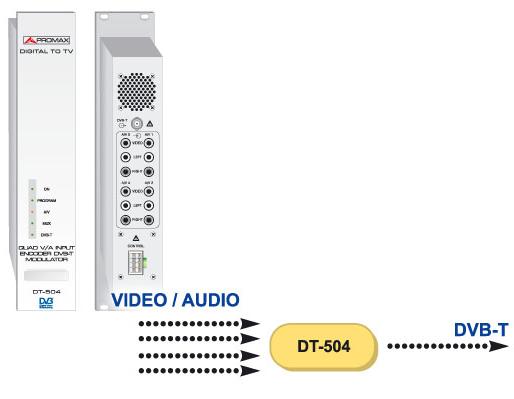

The DT-504 module offers the possibility to build a broadcast signal in DVB-T and TS-ASI(*) format from four composite video and audio inputs. It is made of four independent video and audio MPEG-2 encoders and a modulator. Audio inputs can be stereo or mono.

Frequently some TV services are only available as analogue baseband video. That is the case of encrypted programmes which can only be received with a dedicated STB and smart card, signals from CCTV cameras, door entry systems, etc.

By means of the DT-504 modulator, programmes originally in analogue format are inserted to the TV distribution network with the benefits of DVB-T technology.

(*) TS-ASI output optional (option OP-504-S).

A/V INPUTS Connectors	4 independent A/V inputs 3 RCA-Female connectors for each input
RF OUTPUT Connector	1 DVB-T multiplex Female F-type, Impedance 75 ?
TS-ASI OUTPUT	Optional
MPEG-2 ENCODER Video input Audio input Format Video bitrate Audio bitrate Editable parameters Measurements	PAL/NTSC Stereo/Mono/Dual/Joint Stereo MPEG-2 Acording to DVB-T modulation parameters From 32 to 384 kbits/s selectable Service Name, Service ID, V�deo PID, Audio PID, PMT PID Total bitrate
CONFIGURATION AND POWER SUPPLY	Via the DT-800 Control and Power module. Control can be made remotely from a PC

Optiuni recomandate

DT-800B	Control unit and power supply.
DT-802	Control unit and redundant power supply modules.
DT-900	Rack and wall mounted structure.
DT-900B	Rack mounted structure.
DT-901	Empty module plates..
DT-902B	Power CAM modules for smart cards..
CC-043	Supply and control cable with 3 connexions for DT-800B (included)
CC-044	Supply and control cable with 4 connexions for DT-800B (included)
CC-143	Supply and control cable with 3 connexions for DT-802 (included)
CC-144	Supply and control cable with 4 connexions for DT-802 (included)
OP-XXX-V	Output in the range 170-650 MHz for modules with DVB-T..
OP-800-P	Option required to use DT-800B with 3 x DT-730 modules
OP-212-D	Dual independent output for DT-212B
OP-504-S	TS-ASI output option for DT-504B

	RECEIVERS WITH ASI-TS OUTPUT
DT-302	Dual DVB-S/S2 receiver with CAM, ASI-TS output.
DT-312	Dual DVB-T receiver, ASI-TS output.
DT-324-M	IP receiver to ASI-TS output (MPTS).
DT-324-S	IP receiver to ASI-TS output (SPTS).

	IP STREAMERS
DT-421-M	IP Streamer. ASI-TS inputs, IP output (MPTS)
DT-421-S	IP Streamer. ASI-TS inputs, IP output (SPTS)

	COMBINERS - AMPLIFIERS
DT-700	4x1 quadruple DVB-T combiner .
DT-710	8 input DVB-T combiner with a 117 dBuV (+10 dBm) one single output.
DT-722	4 input DVB-T combiner with a 129 dBuV / 250 mW (+22 dBm) one single output.
DT-730	DVB-T amplifier with a 137 dBuV / 1 W (+30 dBm).
DT-610	Optical transmitter module
DT-620	Optical receiver module
