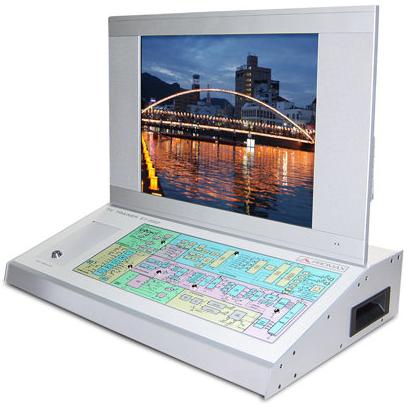

The ET-893 is a suitable equipment for the learning of the flat screen television sets operation equipped with TFT-LCD and Plasma technology that allows the student to become familiar with the more advanced technological innovations, as well as Digital Terrestrial Television (DVB-T). The trainer includes a failures generation module.

The ET-893 block diagram shows through an intuitive way the different stages that compounds the flat screen receiver.

SCREEN

20", 4:3 format (640x480 pixels) with OSD
Systems: DVB-T, PAL B/G/I/D/K, SECAM B/G/D/K/L
SCART and A/V outputs

BLOCK DIAGRAM

Power supply, IF and Demodulador, Video Processing,

Audio Processing, System Control, Inputs/Outputs, Climbing circuit

DOCUMENTATION

Training Manual, Teacher's Manual, Exercises Manual,

Technical Documentation, Circuits Description Manual
