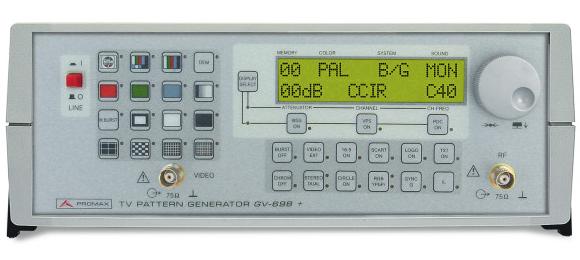

Generator video mira TV color PAL/ NTSC/ SECAM Promax GV-698+

Cod: Promax GV-698




Brosura produs PDF, 0.08 Mb

Descriere

The GV-698+ is a TV pattern generator (23 patterns) with excellent price / performance ratio which is specially suitable for servicie of all kinds of TV receivers. This pattern generator has the features usually found only in professional units, such the NICAM sound, the teletext, or the 16:9 patterns.





  • PAL B, G, H, D, K, I, M, N,  NTSC M, SECAM B, G, H, D, K, K1, I, L TV Standards
  • 4:3 and 16:9 format patterns
  • Compatible with PAL, SECAM and NTSC systems
  • NICAM and Zweiton Sound
  • Addition of an electronic circle on all patterns (except colour bars)
  • Two logotypes
  • VPS / PDC control signals
  • Multi-standard and multi-system analogue TV signals
  • RS-232 remote control





STANDARD TV

PAL B, G, H, D, K, I, M, N
NTSC
M
SECAM B, G, H, D, K, K1, I, L

FREQUENCY

37-865 MHz



Optiuni recomandate

OP-698-01 Logotype programming for GV-698+ (upgrade at Calibration Centre)
