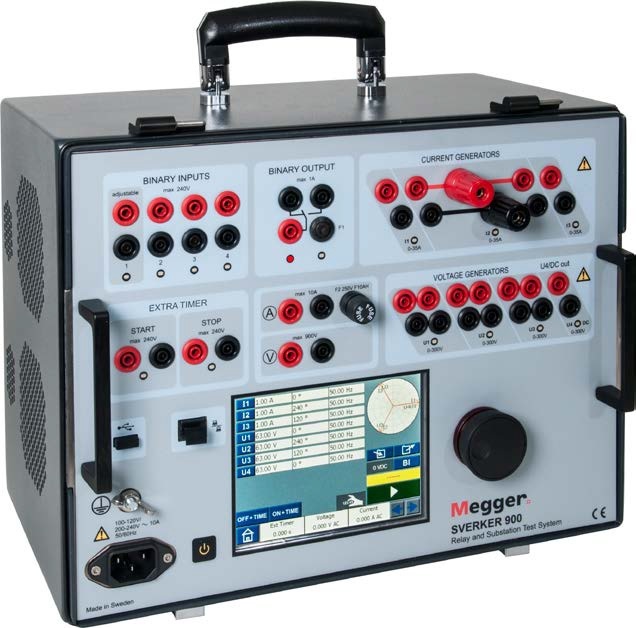

Trusa trifazata de verificare relee de protectie Megger SVERKER900

Cod: Megger SVERKER900 SVERKER-900




Brosura produs PDF, 0.79 Mb


Descriere

  • The toolbox for substation 3-phase testing
  • Three currents and four voltages
  • Stand-alone functionality
  • Rugged and reliable for field use
  • Generation of 900 V and 105 A in single phase mode
  • Secondary and primary testing

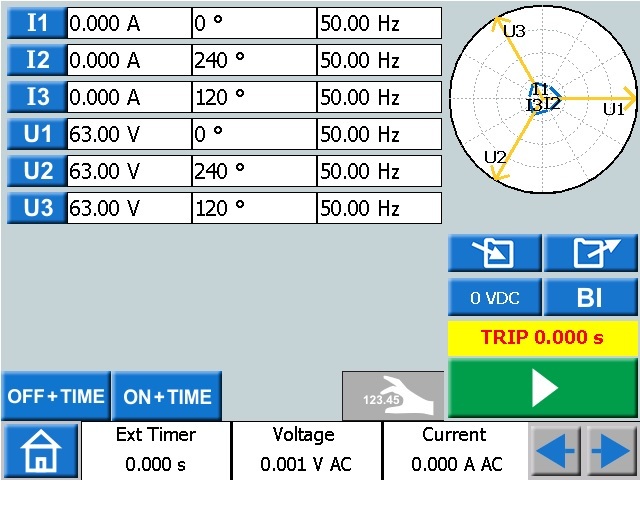

The SVERKER 900 Relay and Substation Test System is the engineer’s ultimate toolbox that addresses the increasing need for three-phase testing capability in electrical distribution substations, renewable power generation stations and industrial applications. The intuitive user interface is presented on the LCD touch screen. It has a powerful combination of current and voltage sources and a versatility of measurement possibilities.
The SVERKER 900 is specifically designed for basic, manual threephase secondary testing of protection devices. In addition, various primary testing can be performed, since the current and voltage sources can be series- and/or parallel connected to allow for up to 105 A AC or 900 V AC output. All three current and four voltage sources can be individually adjusted with respect to amplitude, phase angle and frequency. The fourth voltage source allows for testing of numerical relays that needs a reference voltage simulating the busbar.



Accesorii standard

SVERKER 900 Basic

Main instrument Prefault - Fault instrument CR-19090



SVERKER 900 Standard

Main instrument

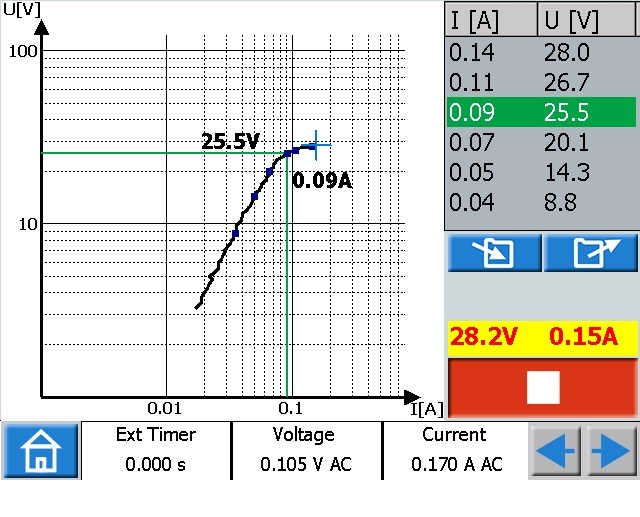

CT Magnetization instrument

Prefault - Fault instrument

Ramping instrument

Sequencer instrument CR-19092



SVERKER 900 Expert*

Main instrument

CT Magnetization instrument

Prefault - Fault instrument

Ramping instrument

Sequencer instrument

Impedance instrument CR-19094



Included accessories

Including:

Test cable set standard GA-00030

Protective cable GA-00200

Cable set SVERKER 900 GA-00036

Flight case with wheels GD-00185

*Will be released later.



Optiuni recomandate

Optional accessories

Flight case GD-00182

Low current adapter CR-91010
