Sarcina testare descarcare baterii UPS-uri Megger TORKEL-840 TORKEL-860 BS-49094 BS-49096

Cod: Megger TORKEL-840 BS-49094 TORKEL-860 BS-49096




Brosura produs PDF, 0.52 Mb


Descriere

• Batteries can be tested "in service"
• Unit adjusts to include load currents in the test parameters
• User adjustable alarm and shutdown points to avoid excessive discharge
• Easily expandable for larger battery banks using TXL extra load units (option)

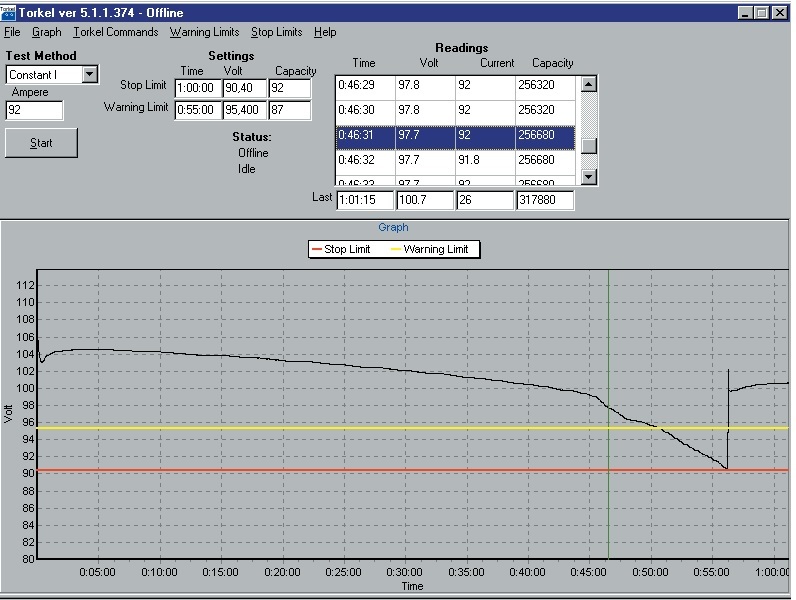

• Computerized test operation using TorkelWin software (option)

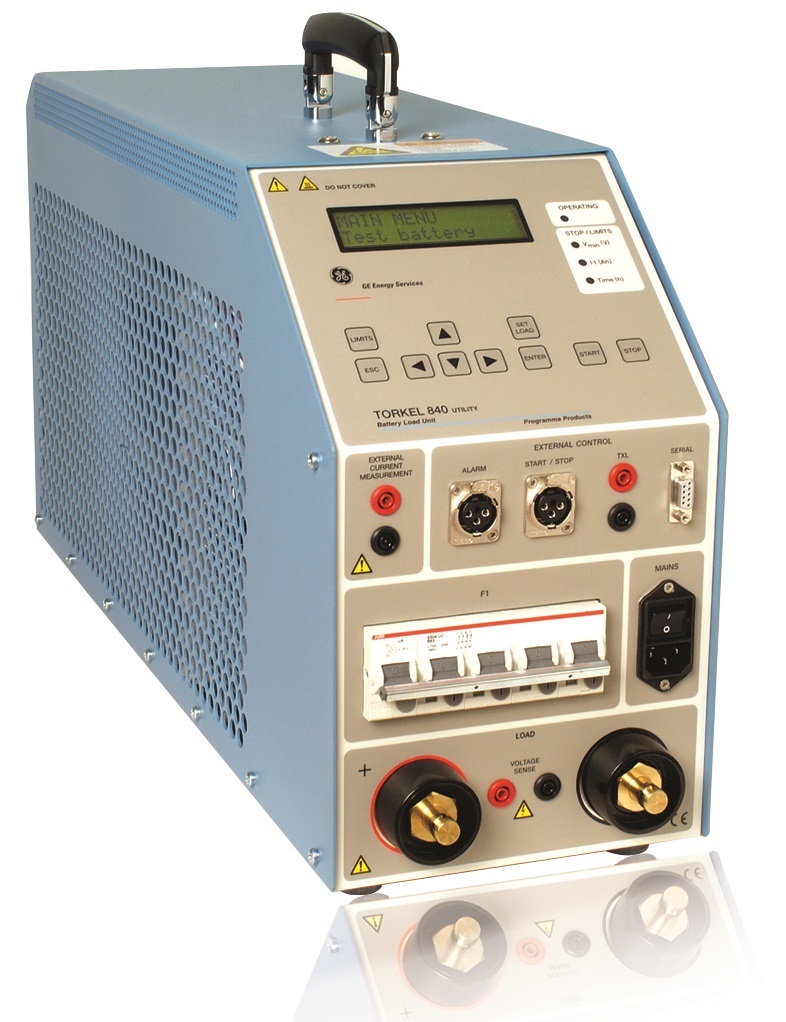

TORKEL® 840 - UTILITY is used for battery systems ranging from 12 to 250 V - often encountered in switchgear and similar equipment. Discharging can take place at up to 110 A, and if higher current is needed, two or more TORKEL 840 units, or extra load units (TXL), can be linked together. Tests can be conducted at constant current, constant power, constant resistance or in accordance with a pre-selected load profile.
TORKEL 860 - MULTI is designed primarily for people who travel from place to place to maintain battery systems having different voltages. It features excellent discharging capacity plus a broad voltage range and outstanding portability - a unique combination.



Accesorii standard

TORKEL 840

Complete with:

Cable set GA-00550

Transport case GD-00054 BS-49094



TORKEL 860

Complete with:

Cable set GA-00550

Transport case GD-00054 BS-49096



Optiuni recomandate

Optional

TORKEL Win

PC software BS-8208X

Extra loads

TXL830 BS-59093

TXL850 BS-59095

TXL870 BS-59097

TXL890 BS-59099

Cable sets

Cable set for TXL850 2 x 3 m, 70 mm2, with cable lug. Max 100 V 270 A. Weight: 5.0 kg (11 lbs) GA-00554

Extension cable set, 110 A 2 x 3 m, 25 mm2. Max 480 V

Weight: 3.0 kg (6.6 lbs) GA-00552

Sensing lead set

Cable set for measuring voltage at battery terminals.

2 x 5 m (16.4 ft) GA-00210

Clamp-on ammeters

DC clamp-on ammeter, 200 A

To measure current in circuit outside TORKEL XA-12992

DC clamp-on ammeter, 1000 A

To measure current in circuit outside TORKEL XA-12990



BVM

Including:

Dolphin clips, Power & signal connector,

Power supply, Connection cables and Carrying case

BVM150 With TORKEL Win software System of 16 BVM units CJ-59092

BVM300 With TORKEL Win software System of 31 BVM units CJ-59093

BVM600 With TORKEL Win software System of 61 BVM units CJ-59096

BVM150 With PowerDB software System of 16 BVM units CJ-59192

BVM300 With PowerDB software System of 31 BVM units CJ-59193

BVM600 With PowerDB software System of 61 BVM units CJ-59196
