The Megger LRCD200 series is the latest generation of combined non-tripping loop tester and RCD test instruments that provide simple, affordable and flexible test tools for electrical contractors testing energised circuits.

All LRCD200 series instruments are supplied with a calibration certificate.

Two instruments are available:

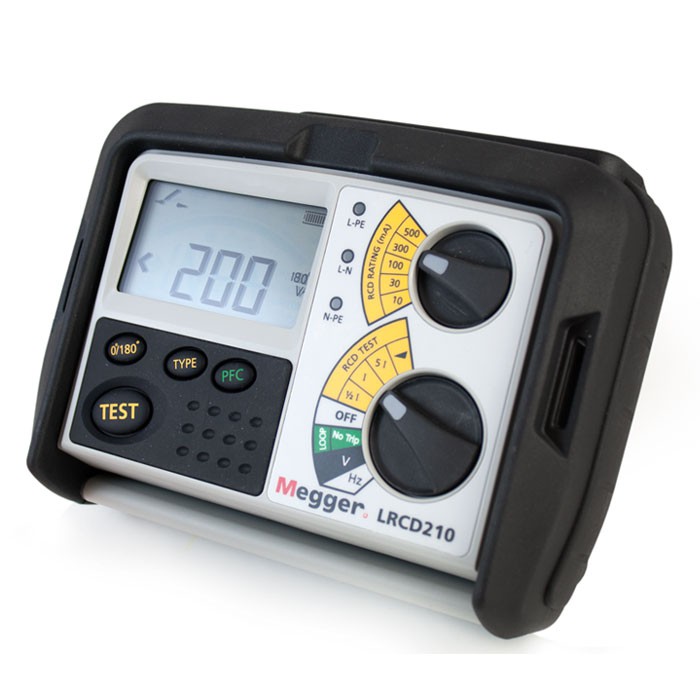

LRCD210

This instrument provides three phase safe non-trip loop testing and 1/2I, I, and 5I RCD testing for standard, selective and DC RCDs. Suitable for domestic installers testing to UK Part P requirements.

LRCD220

As the LRCD210 with the addition of 2 wire fast testing, plus phase to phase and phase to earth measurement.

Both instruments will not trip RCDs rated at 30 mA or greater during loop testing, even electronic RCDs.

Features:

Non-trip loop tester
RCD testing from 10 mA to 1000 mA
Extremely easy and safe to use
Built-in protective front cover
Tough Rubber armoured case
Weatherproof
3 year warranty
