• Automated measurement and analysis of moisture content, tan delta/power factor and oil conductivity
• Individual temperature correction (ITC) of tan delta/power factor and oil conductivity
• 40% faster measurements with the new IDAX 5.0 SW
• Reliable measurements in high-interference environments
• Multi-function test set for transformer measurements

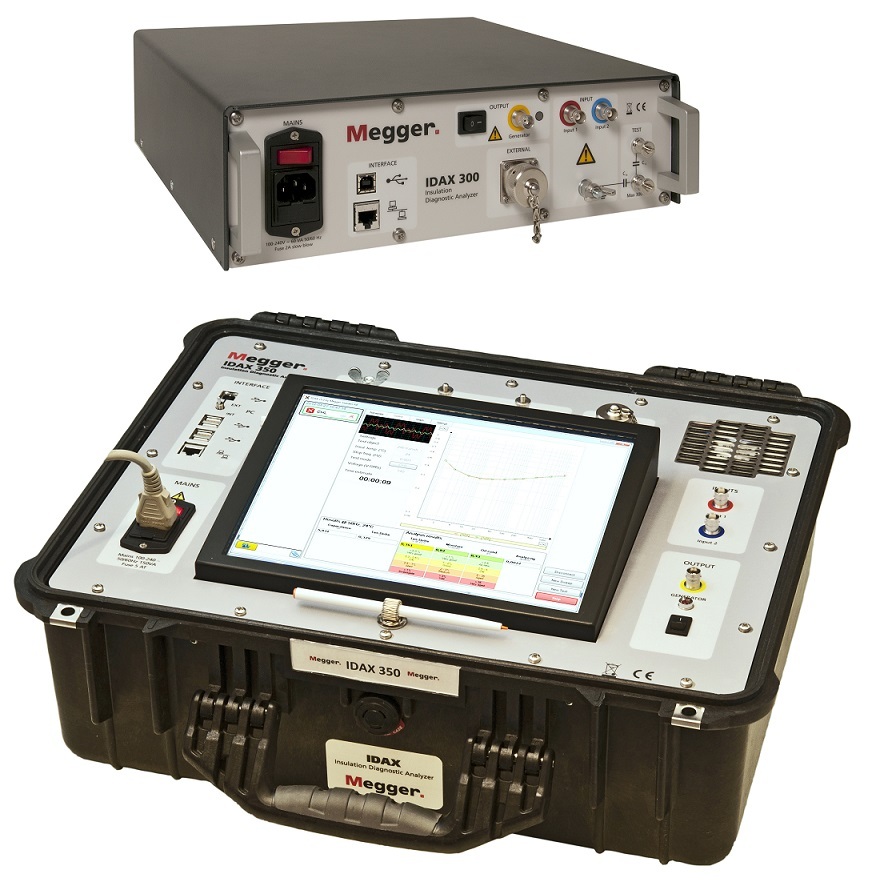

IDAX300 is a very compact instrument and is used together with an external computer. The IDAX350 has a built-in computer but can also be used with an external computer.
IDAX300 and IDAX350 provide an accurate and reliable condition assessment of insulation in transformers, bushings, generators and cables. The IDAX system maximizes the outcome of maintenance activities allowing for load and service life optimization.
IDAX300 and IDAX350 are smaller, lighter and faster than their predecessor IDA200 and IDAX206. It maintains better accuracy and ability to provide reliable data using true AC DFR (Dielectric Frequency Response), also known as FDS (Frequency Domain Spectroscopy), for reliable test results in high interference environments. The state-of-the-art software makes testing both easier and faster, allowing transformer moisture and oil assessment in about 22 minutes (20°C).

Accesorii standard

IDAX 300 AG-19090

IDAX 300S AG-19092

IDAX 350 With internal computer AG-19192

Included accessories

Mains cable

Ground cable 5 m (16 ft), GC-30060

Generator cable 18 m (60 ft), GC-30312

Measurement cable, red 18 m (60 ft), GC-30322

Measurement cable, blue 18 m (60 ft), GC-30332

USB cable, Windows software, Transport case

Optiuni recomandate

Optional accessories

IDAX calibration box CAL 300 AG-90010

IDAX demo box IDB 300 AG-90020

2nd channel option (factory upgrade to IDAX 300S) AG-90200

Generator cable, 9 m (30 ft) GC-30310

Measurement cable, 9 m (30 ft), red GC-30320

Measurement cable, 9 m (30 ft), blue GC-30330

Accessory kit:

mini bushing tap connectors (4 pcs)

hot collar straps (3 pcs)

temperature and humidity meter

.75" bushing tap connector

1" bushing tap connector

"J" probe bushing tap connector

1 m (3 ft) non-insulating shorting leads (3 pcs)

2 m (6 ft) non-insulating shorting leads (3 pcs) AG-90100
