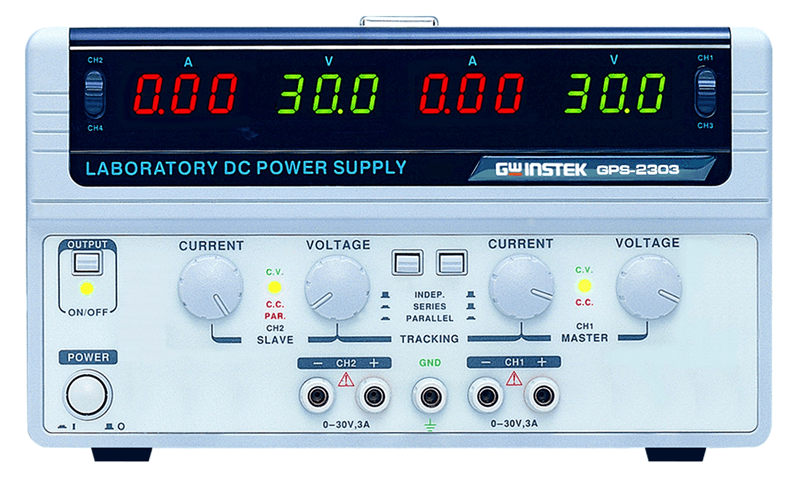

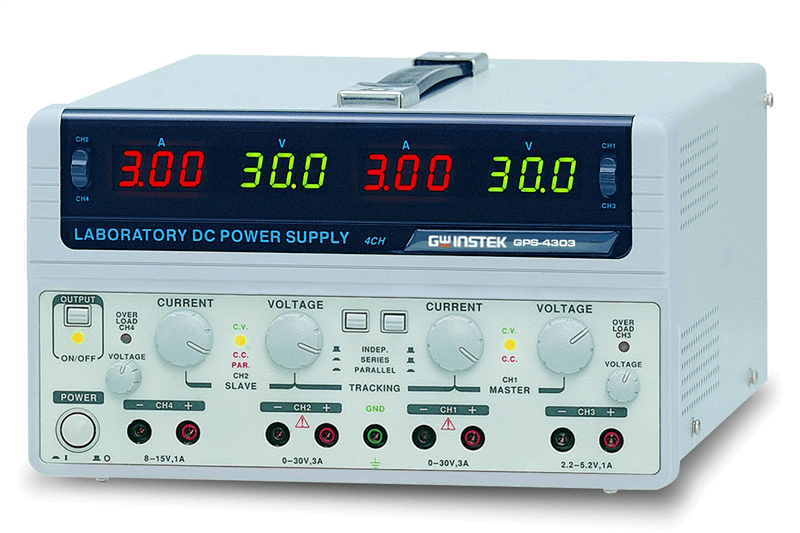

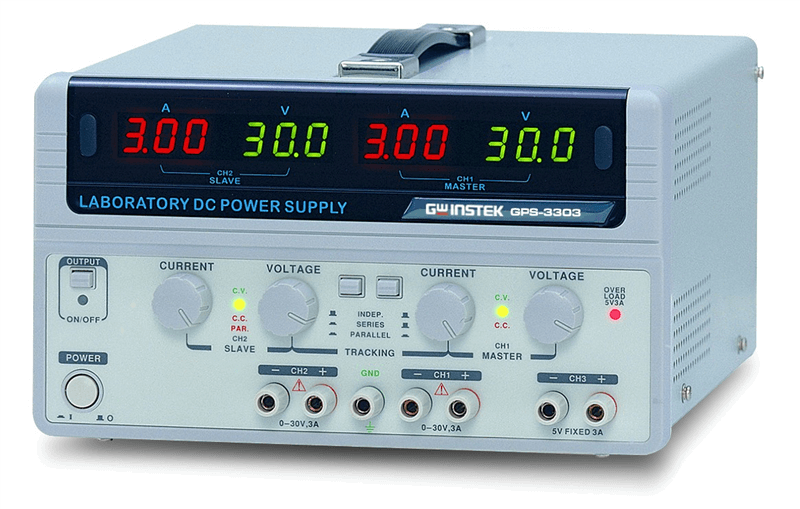

GOODWILL INSTEK GPS-X303 Series

Cod: GOODWILL INSTEK GPS-X303 Series




Brosura produs PDF, 0.12 Mb


Descriere

The GPS-Series are 2-4 channel, 180 to 200W output, linear DC power supplies. Overload and reverse polarity protection, and an output on/off switch keep the GPS-Series and their load safe from unexpected conditions. A High regulation (0.01%+3mV) and low ripple/noise (< 1mVrms, 5Hz~1MHz) are maintained for channel 1 and 2 in constant voltage mode. Automated cooling fan speed control minimizes fan noise according to load conditions, ensuring quiet operation. The GPS-Series are an ideal solution for lightweight, inexpensive bench-top or portable applications requiring high regulation and multiple outputs.



Features:

  • 4 Independent Isolated Output
  • Four "3 Digits" LED Displays
  • 0.01% Load and Line Regulation
  • Low Ripple and Noise
  • Tracking Operation and Auto Series/Parallel Operation
  • Output ON/OFF Switch
  • Output Voltage and Current Setting When Output Disable
  • Fan Speed Control Circuit to Minimize Fan Noise
  • Over Load and Reverse Polarity Protection
  • Optional European Jack Type Terminal
