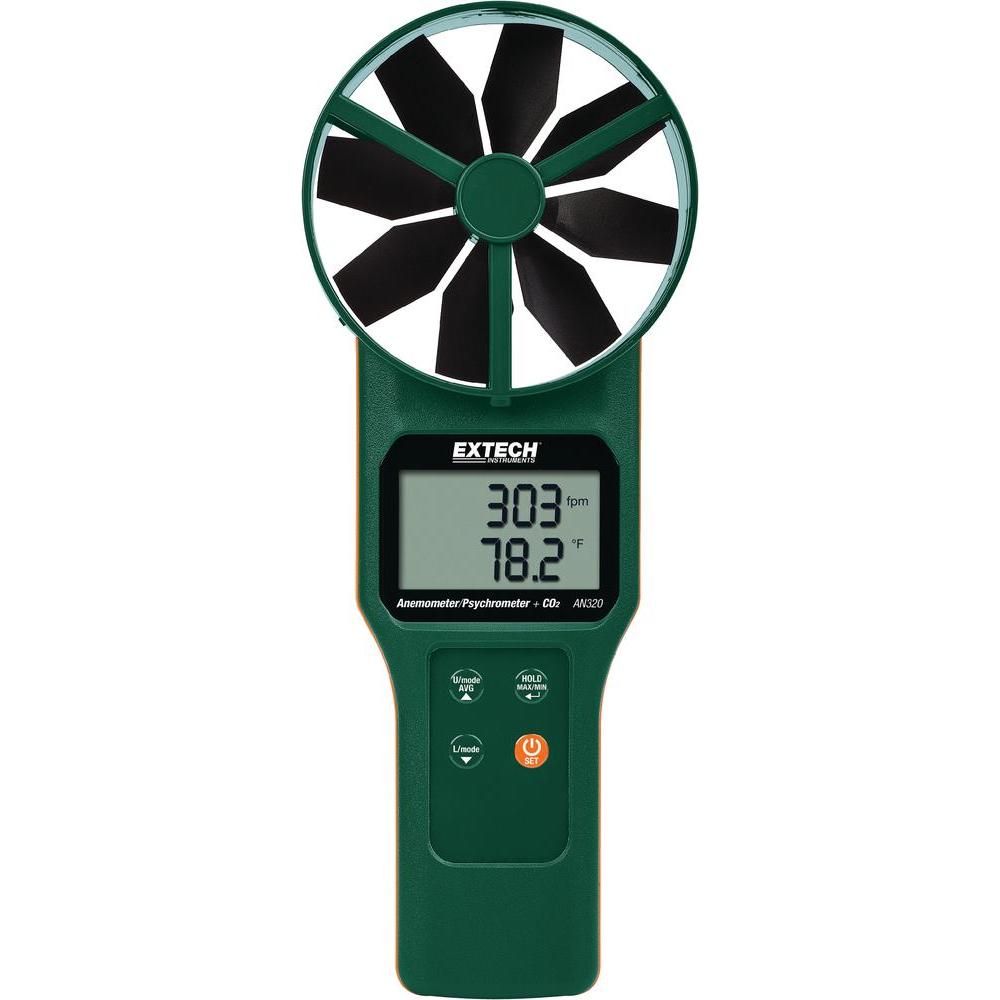

Extech AN320 Termometru Anemometru cu elice si masura CO2

Cod: Extech AN320




Brosura produs PDF, 0.35 Mb

Descriere

  • 4" (10cm) vane allows for more precise readings on larger size ducts
  • Air Velocity, Air Flow, Relative Humidity, Wet Bulb and Dew Point, Carbon Dioxide (CO2)
  • Built-in thermistor for air temperature
  • Multipoint and timed average calculations
  • Min/Max, Data Hold, and Auto power off
  • Complete with four AAA batteries and hard carrying case

Specifications

Range

m/s / Basic Accuracy

0.2 to 30m/s / ±1.5%

ft/min / Basic Accuracy

40 to 5900ft/min / ±1.5%

CFM/CMM

0 to 99999

Temperature / Basic Accuracy

-4 to 140°F (-20 to 60°C) / ±0.6°C

Humidity / Basic Accuracy

0.1 to 99.9%RH / ±3%RH

Wet Bulb

-4 to 140°F (-20 to 60°C)

Dew Point

23 to 140°F (-5 to 60°C)

Carbon Dioxide (CO2)

0 to 9999ppm

Dimensions/ Weight

10.6x4.2x2" (269x106x51mm) / 7oz (200g)
