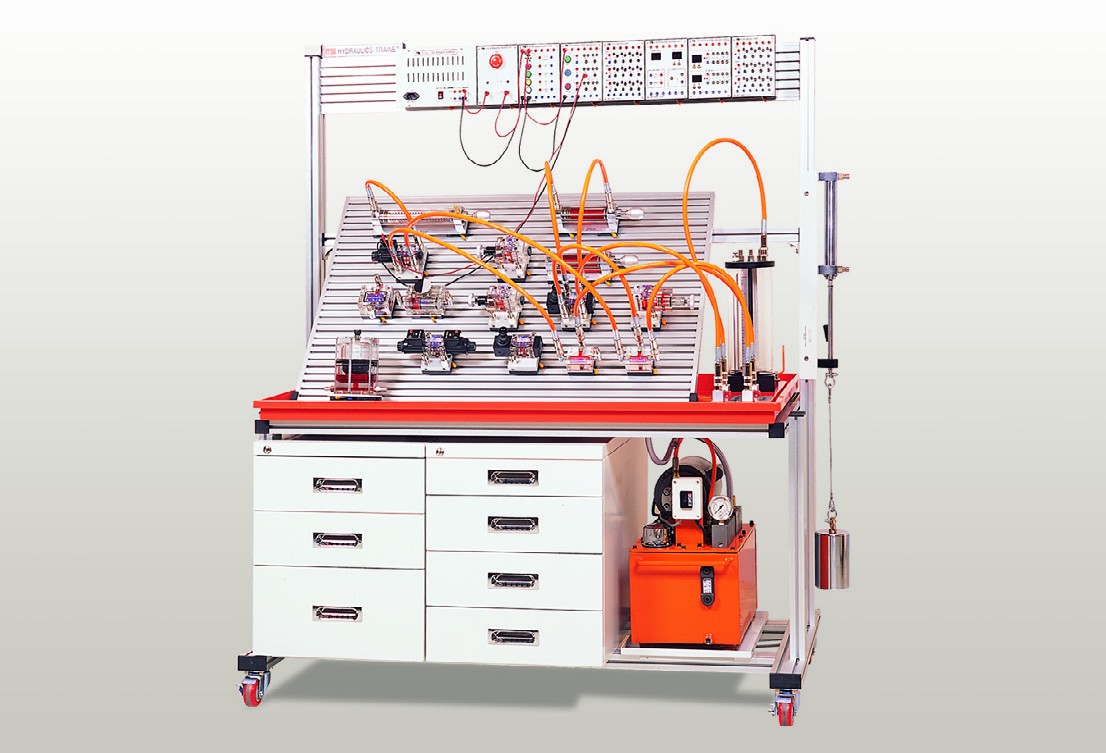

Transparent Hydraulic Trainer ED-7964

Cod: ED-7964




Brosura produs PDF, 0.62 Mb

Descriere

CONFIGURATION

  • Common Equipment & Componet Requirements
  • Components of Hydraulics Transparency Module Set(THT-7964)
    • Essential Components(THT-7964-1)
    • Additionally Recommended Components(THT-7964-2) [OPTION 1]
  • Components of Electro Hydraulics Transparency Module Set (THT-7965)
    • Essential Components(THT-7965-1)
    • Additionally Recommended Components(THT-7965-2) [OPTION 2]
  • Experimental Support Teaching Materials [OPTION 3]
  • Others [OPTION 4]



Features:

  • Convenient parts fixation by ‘one-touch lever’ bases and aluminum profile structure
  • Efficient space utilization by mounting parts horizontally/vertically
  • 41 transparent hydraulic and electrical/electronic parts plus various optional components.
  • Various hydraulic devices and components for Flexible Manufacturing System
