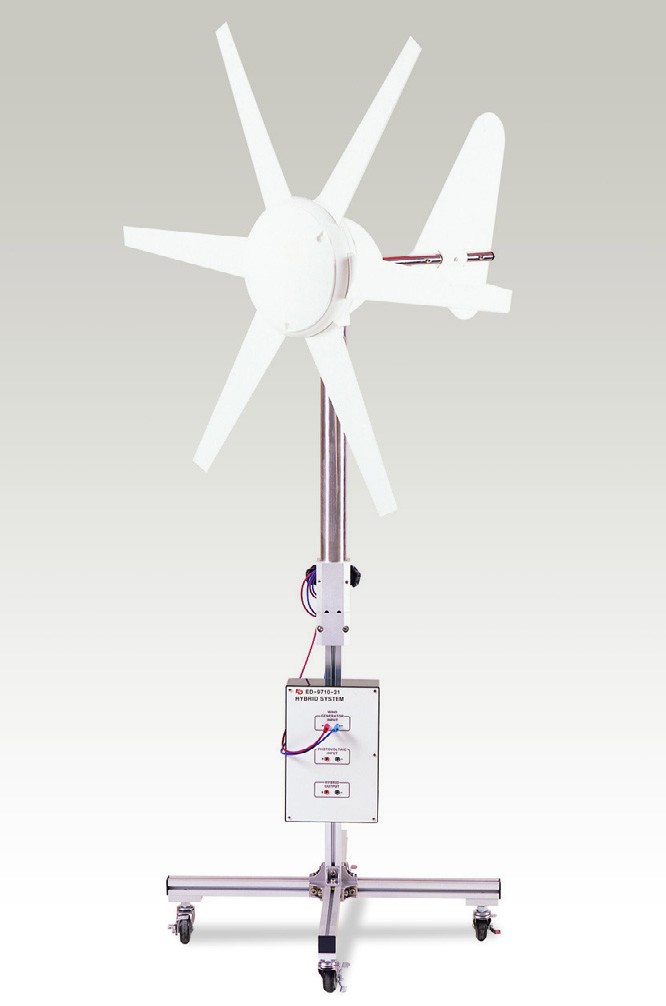

300W Wind Generator Kit ED-9732

Cod: ED-9732




Brosura produs PDF, 0.43 Mb

Descriere

EXPERIMENTS

  • Standalone Use
    • Principle of wind power generation(simulation)
  • In liaison with ED-9710 or ED-9720
    • Wind generation characteristics by the load
    • Wind generation characteristics by the wind speed
    • Battery charge and inverse voltage protection
    • Composite configuration with solar cell modules
    • Interlocking experiment on Power Processing/Conversion Module
    • Monitoring on AC to DC conversion

SPECIFICATIONS

  • Generator
    • Max. Operating Power : 300W
    • Propeller : 6 wings
    • Rated Output : 100w(10m/s)
    • Starting Wind Speed : 2 m/s
    • Output Voltage : 12 V
    • Rotational Diameter : 90.3 cm
    • Turbine’s Weight : 4.5kg
  • Charging Controller
    • Regulating cut-in Voltage : 13.8V
    • Maximum charge Voltage : 14.4V(±2%)

GENERAL CHARACTERISTICS

  • Dimension
    • Wing’s diameter : 903mm
    • 680Body’s length : 608mm

ACCESSORIES

  • Cable(Power, Serial, Circuit Connection) : 1set
  • User Manual : 1ea
