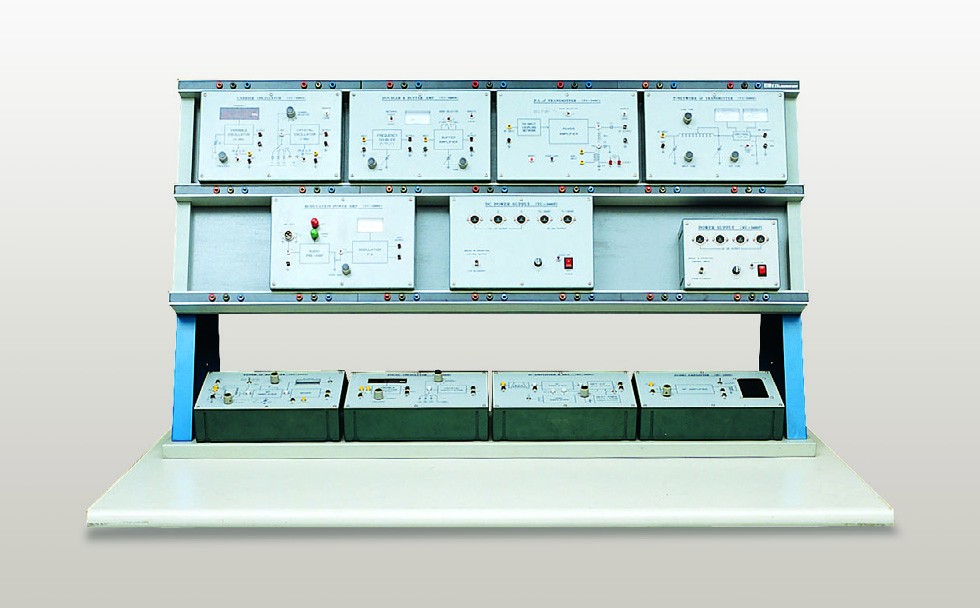

AM Transceiver Trainer ED-3400

Cod: ED-3400




Brosura produs PDF, 0.55 Mb

Descriere

RECEIVER SECTION

  • Sensitivity : About 2µV
  • Intermediate Frequency : 455kHz
  • Frequency Control : Variable and X-Tal
  • Dimension & Weight : 425(W) x 180(H) x 410(D)mm, 18kg



TRANSMITTER SECTION

  • RF Output : 5W Max.
  • P.A Tank Circuit : p-Network
  • Oscillation Mode : X-Tal and LC Circuit(Variable Control)
  • Dimension & Weight : 520(W) x 180(H) x 410(D)mm, 15kg



GENERAL CHARACTERISTICS

  • Frequency Range : 3.5MHz~12MHz(2-Band)
  • Electro-Wave Mode : AM/CW
  • Antenna Impedance : 50/75?
  • Operating Temperature : 0~45°C, Below 85% R.H.
  • Input Voltage : AC 220V, 50/60Hz
  • Module Size : 250(W) x 65(H) x 166(D)mm



Features:

  • HF band(3.5~12MHz)
  • Transmitter and Receiver modules for each circuit stage
  • Graphical latour of the block diagrams, plus LEDs and test points
  • Covers Push-to-Talk and helps understand short wave communications
