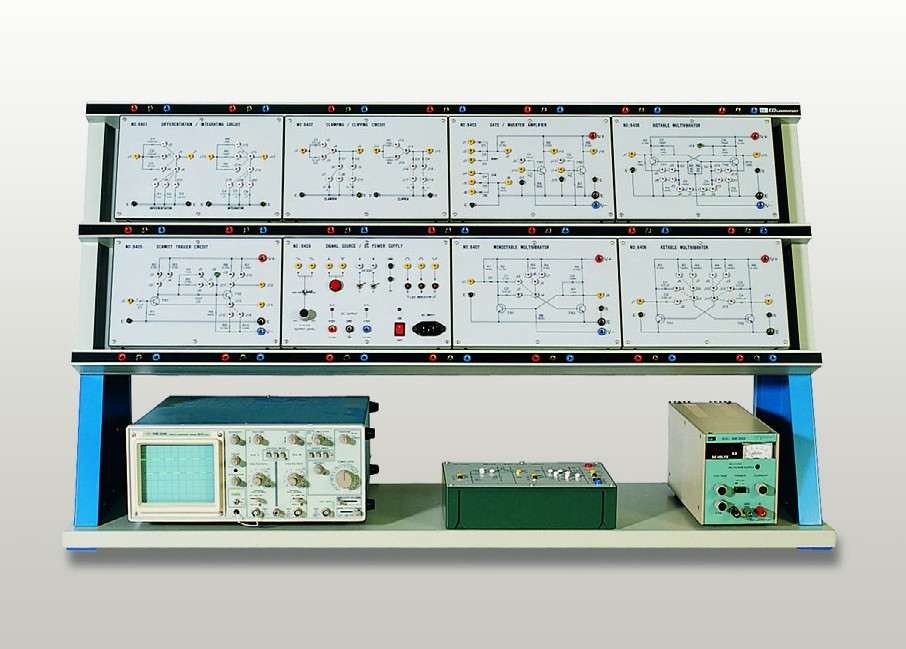

Pulse Circuit Trainer ED-6400

Cod: ED-6400




Brosura produs PDF, 0.72 Mb

Descriere

SIGNAL SOURCE & DC POWER SUPPLY(NO-6409)

  • Output Frequency : 100Hz, 1kHz
  • Output : 0~10Vp-p(Sine and square wave)
  • One-Shot Output : Positive and negative pulse
  • Logic Switch : 2-switch control
  • Indicators : 3-LED(built-in Driver Amp)
  • DC Output : +12V(0.5A), -12V(0.3A)
  • DC Protection : Overload Protected
  • Input Voltage : AC 220V, 50/60Hz
  • Dimension : 260(W) x 64(H) x 166(D)mm



MODULES & SYSTEM CASE

  • No. of Experimental Modules : 8ea
  • Module Dimension : 250(W) x 64(H) x 166(D)mm
  • System Case Dimension : 550(W) x 200(H) x 461(D)mm
  • System Weight : Approx. 16kg



ACCESSORIES

  • Patch Cord : 1set
  • AC Power Cord : 1ea
  • Experimental Manual : 1ea
  • Experimental Rack(MR-8) : 1ea



EXPERIMENTAL RACK(MR-8)

  • Module Mounting Capacity : 8ea
  • Power Supply Bus(DC) : 2-Line(+, -) and GND
  • Dimension : 1100(W) x 640(H) x 300(D)mm
