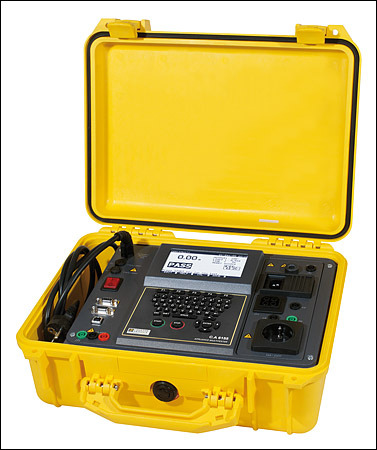

The multi-function C.A 6155 can be used for all the measurements required to test the electrical safety of portable electrical equipment, machines and switchgear.

It provides a wide range of fully-compliant measurements:

- Measurements in compliance with the IEC 60204

Ed.5 / VDE701/702 / IEC 61439 (IEC 60439) standards

- 200 mA and 10 A continuity measurements

- Insulation resistance at 250 VDC and 500 VDC

- Dielectric test at 1,000 V / 1,890 V / 2,500 V

- Leakage current measurement by substitution method

- Differential leakage current

- Contact leakage current

- Mains power-lead polarity test

- Functional test with consumption measurement

- TRMS leakage and load current measurements (current clamp available as option)

- RCD test (including portable RCDs)

- Loop impedance and line impedance measurement with calculation of short-circuit currents

- Discharge time

- Phase rotation

- Voltage / frequency measurements

- Functional and visual inspections.

Accesorii standard

C.A 6155. . .. . . . . . . . P01146001

Delivered with an accessories bag containing:

- 1 high-voltage test probe

- 1 mains-socket test cable

- 1 test cable with separate wires

- 1 red lead 1.5 m long

- 1 black lead 1.5 m long

- 1 green lead 1.5 m long

- 1 red lead 4 m long

- 4 test probes

- 3 crocodile clamps

- 1 operating manual in 5 languages

- 1 USB communication cable

- 1 RS232 communication cable

- Data transfer software
