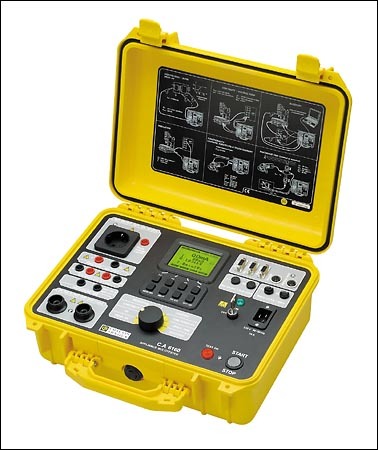

The C.A 6160 is a powerful portable instrument for complete certification testing of a broad range of electrical appliances and equipment: dielectric test, continuity, voltage drop, insulation resistance, leakage current, discharge time and functional testing.

dielectric test: standard measurement modes (Un from 100 to 5,000V with Ilim 500mA) and programmed modes (t1, t2, t3, U1, U2)
continuity: up to 100O with 0.1 < ITEST < 25A
voltage drop: up to 100V (Itest > 10A)
insulation resistance: up to 1GO at 250/500VDC and 1,000VDC
measurement of internal and external discharge time (at the plug)
leakage current: operating and residual up to 20mA, contact up to 2mA
functional testing: voltage, current, frequency and power
AUTOTEST function for automatic execution of measurement sequence (up to 50)
large memory: 1,600 measurements
software to upload the stored data, generate test reports and program measurement sequences
delivered with all necessary measurement cables as standard and many optional accessories
dimensions: 410 x 175 x 370 mm - weight: 13.5kg

Accesorii standard

Delivered with 1 power cord (EURO or GB), 2 dielectric test guns with 2m of cable, 2 3m insulation test leads (1 red, 1 black), 4 crocodile clips (2 red, 2 black), 2 test probes (1 red, 1 black), 4 x 2.5m continuity test leads (2 red, 2 black), 1 discharge time cable (EURO or GB), and 1 carrying bag for the accessories

Optiuni recomandate

Alte produse CHAUVIN ARNOUX

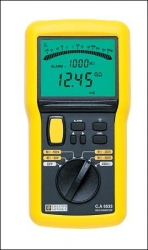

MEGOHMMETRU IZOLATIE 500V CHAUVIN ARNOUX CA6533
