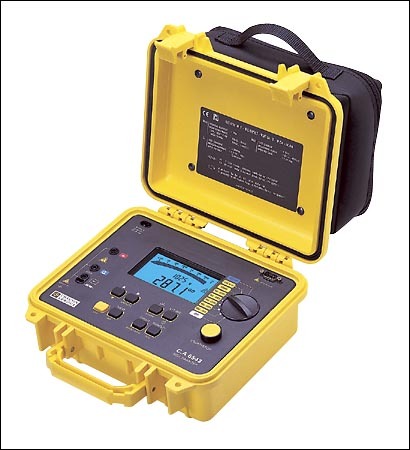

Megohmmetru izolatie 1kV Chauvin Arnoux CA6543

Cod: Chauvin Arnoux CA6543




Brosura produs PDF, 0.52 Mb

Descriere

The C.A 6543 is a 50V to 1kV high performance insulation tester. It supports extreme site conditions and is expert in qualitative insulation analysis :



  • insulation: up to 4TO (5 cal.) at 50/100/250/500 and 1,000V DC
  • automatic calculation of insulation quality ratios: DAR and PI
  • programmable test period and plottingof the R(t) curve
  • automatic indication of voltage before and after measurement: 1 to 1,000V AC/DC
  • resistance: 0.01O to 400kO
  • continuity: 0.01O to +40O (audible beep and lead compensation )
  • automatic capacitance measurement after each insulation measurement: 0.005 to 4.999½F
  • microprocessor-controlled
  • memorisation of measurements (128KB)
  • bi-directional RS232
  • giant LCD screen with digital display + bargraph
  • backlit display
  • SMOOTH function (smoothing of values displayed)

½          possibility of locking insulation test voltages

½          programmable alarms

½          long battery life due to rechargeable battery with built-in charger

½          remote control probe available as an option

½          electrical safety: IEC 61010-1 + A2 - Cat. III - 600V and IEC 61557

½          dimensions: 240x185x110mm; weight: 3.4kg

½          wide range of accessories available as an option: remote control probe, MegohmView software for processing the data on a PC, printer.







Accesorii standard

C.A 6541 P01.1389.01

C.A 6543 P01.1389.02



Complete with carrying bag containing all the accessories:

_ 2 x 1.5 m safety leads (red/blue)

_ 1 x 1.5 m guarded safety lead (black)

_ 3 x crocodile clips (red/blue/black)

_ 1 x test probe (black)

_ 1 x 2-sided condensed user½s manual

_ 1 user½s manual

_ 8 x LR14 batteries (for C.A 6541)

or 1 x 2m mains lead (for C.A 6543)



Optiuni recomandate

OPTIONAL ACCESSORIES:

Remote control probe P01.1019.35

PC software for C.A 6543 P01.1019.38

Serial printer for C.A 6543 P01.1029.03

Serial-to-parallel adapter

for C.A 6543 P01.1019.41

Pair of 2 test probe leads

(red/ black) P01.1018.55

Set of 3 x 3m safety leads

(red/blue/guarded black) P01.2951.70
