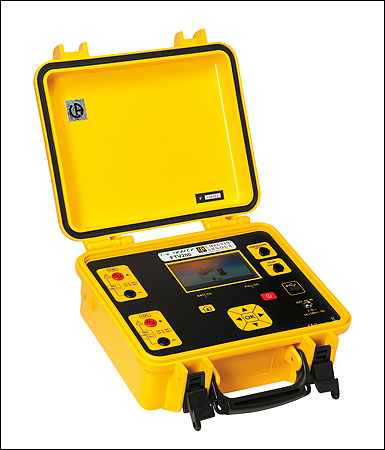

In the field, the FTV200 is ideal for checking solar panels. The FTV200 can be used to carry out tests in compliance with the EN 62446 standard on a panel or string of panels. With the FTV200, all the measurements are performed according to the IEC / EN 60891 standard. To comply with this standard, the inclinometer must be used.

Advantages:

- Better graphical resolution of the I-V curves

- Larger integrated library of panels

- More measurements stored

- Possibility of measuring on all solar panel technologies PV (crystalline, thin-film, etc.)

- The instrument indicates the result: GO-NOGO

- Tests and measurements in compliance with the international standards

- Operation while charging

Measurements:

I-V curve with cursor
Voltage measurement up to 1,000 VDC
Current measurement up to 10 ADC
Pyranometer up to 2,000 W/m2
MPP curve with cursor
More than 500 points per curve
PMAX power measurement
Mesure of résistance Rs
80 MB internal storage capacity
More than 10,000 different panel references
Possibility of external USB key for storage
Bluetooth communication

Accesorii standard

FTV200 I-V TRACER With pyranometer and Pt100 .. P01160740

Carrying bag, set of 3 m cables, set of

MC4 adapters (red/black), MC4/ ½ 4

mm banana adapter, magnetic stylus

for touch screen, USB key, professional

pyranometer, Pt100 probe for ambient

temperature, 1 mains adapter, set of

flexible test probes, operating manual, PC

software and certificate of conformity.

FTV200 I-V TRACER .. P01160745

Carrying bag, set of 3 m cables, set of

MC4 adapters (red/black), cable with

MC4/4 mm plug, magnetic stylus for

touch screen, USB key, 1 mains adapter,

set of flexible test probes, operating

manual, PC software and certificate of

conformity.

Optiuni recomandate

Pyranometre ................................... P01160730

Pt100 ambient temperature probe .......................... P01160731

Pt100 contact temperature probe .......................... P01160732

FTV remote unit .................................. P01160736

FTV200 Bluetooth communication kit ........................ P01160739

Carrying bag ................................... P01298066

USB/RS232 adapter ..................................HX0055

Inclinometer ................................... P01102115

Flexible test probes ................................ P01102116
