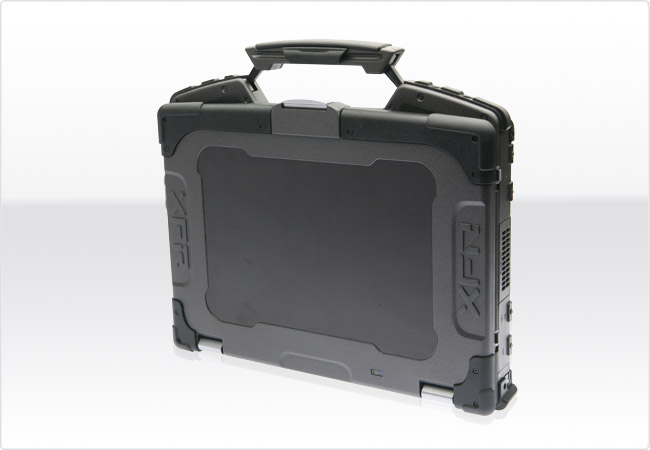

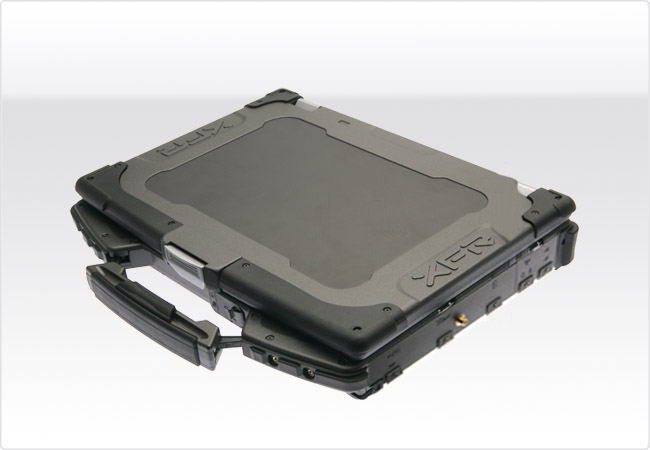

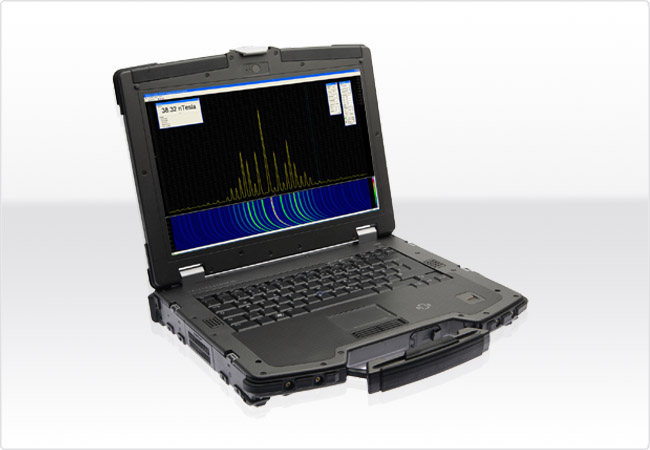

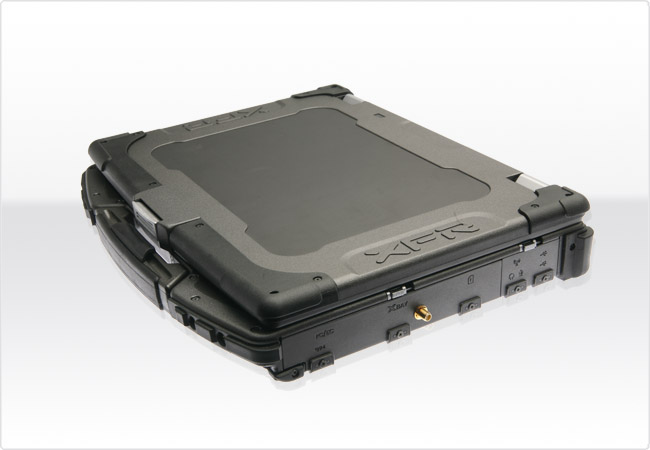

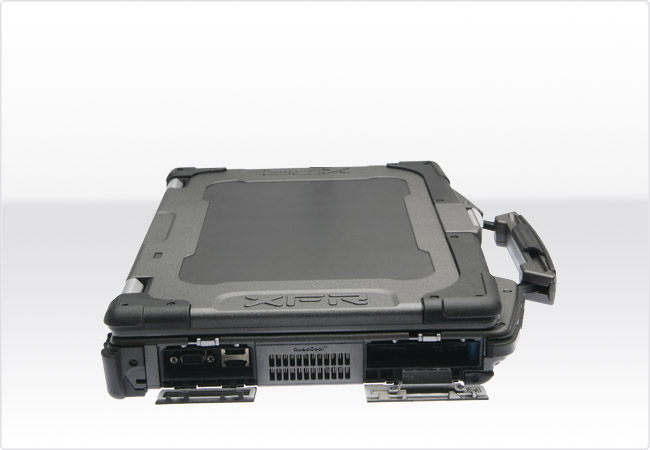

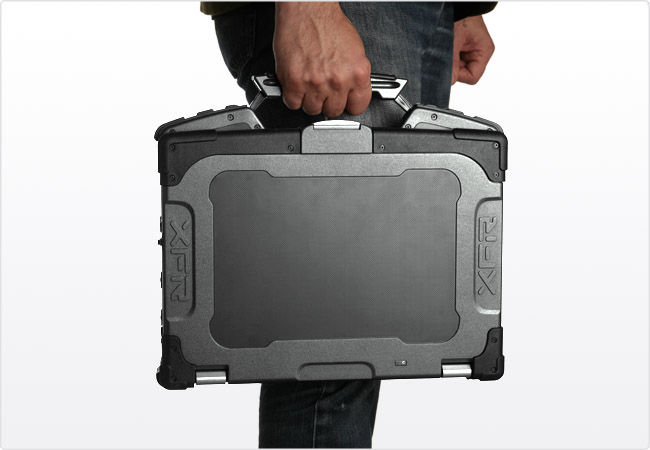

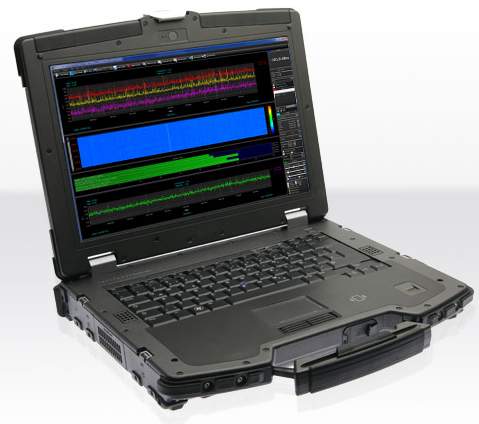

Analizor spectru integrat in laptop frecvente joase cu protectie standarde militare 1Hz..30MHz Aaronia NF-XFR

Cod: Aaronia NF-XFR



Brosura produs PDF, 0.62 Mb


Descriere

  • Frequency: 1Hz to 20MHz (30MHz)
  • Analog Input 200nV to 200mV (typ.)
  • Resolution (RBW): 0,3Hz to 10MHz (1-3-10 step)
  • Units: Volt
  • Detectors: RMS, Min/Max
  • Demodulator: AM, FM
  • Input: High impedance SMA input (f)
  • Audio: Internal speaker with volume control
  • Accuracy: 3% (typ.)
  • Dimensions (L/W/D): 257x353x56 mm
  • Weight: 5kg
  • Warranty: 2 years


Highlights:

  • Internet flash software updates
  • High-performance DSP (Digital Signal Processor)
  • Internal speaker (which can be switched off)


Highlights Notebook:

  • Exclusive Ballistic Armor Protection System to meet and exceed real world and military standards MIL-STD-810F
  • PrimoSeal technology with highest Ingress protection rating (IP65)
  • Prozessor: Intel Core 2 Duo P8700(2,53GHz,1.066MHz,3MB) with Intel GMA X4500HD and fingerprint-reader
  • Monitor: 14,1" widescreen WXGA (1280x800)Memory: 4096MB (2x2048) 800MHz DDR2 Dual Channel
  • Hard Disk: 64GB shock absorbence (5400 1/min) drive
  • Battery: primary 6 cell 54Wh LI-ION
  • Operating system: Windows 7



Examples for possible analysis and measurements within frequency range (1Hz - 30MHz):

  • Traction power
  • Power lines and cables
  • Transformer
  • Power supplies and harmonics
  • Energy saving light bulbs
  • Switching power supplies
  • TFT and LCD monitors and TVs
  • 135kHz RFID
  • DSL
  • ADSL
  • VDSL
  • 13,56MHz RFID
  • Various home appliances, industry and office up to 30MHz


Accesorii standard

  • NF-XFR Outdoor Spectrum Analyzer
  • LCS & MCS Analysis Software (installed)
  • SMA tool
  • Rechargeable battery (installed)
  • Battery charger
  • English manual (on CD)
