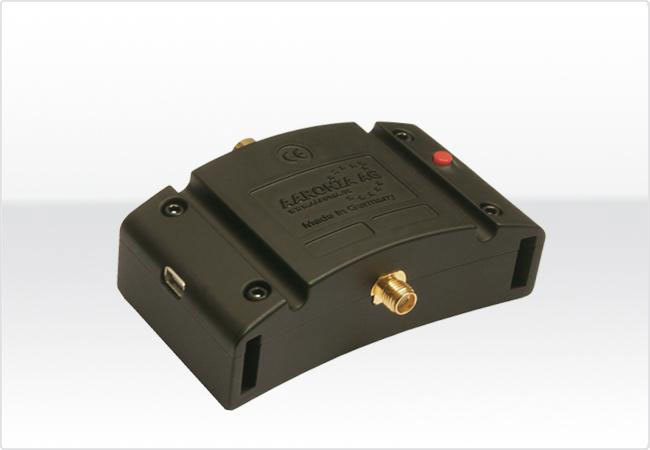

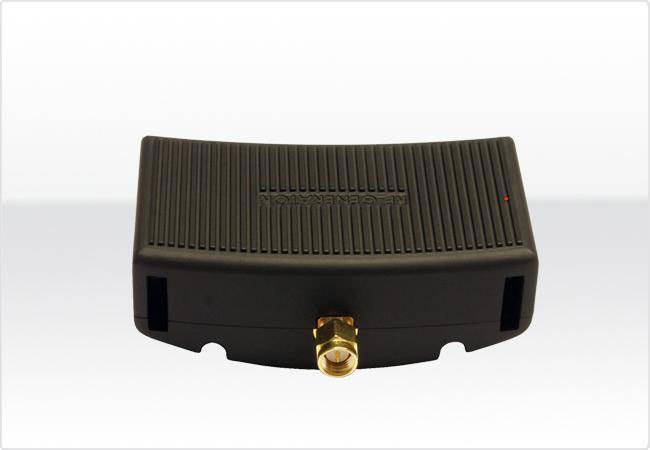

AARONIA BPSG6 Generator RF 23.5MHz..6GHz

Cod: AARONIA BPSG6



Brosura produs PDF, 0.68 Mb


Descriere

Technical data

  • Frequency range: 23,5 MHz to 6 GHz
  • Up to +18dBm output power (male SMA-connector)
  • Smallest power level: -45dBm
  • Up to 63dB dynamic range
  • Frequency accuracy: 15Hz (<100MHz), 150Hz
    (<1GHz), 450Hz (<3GHz), 900Hz (<6GHz)
  • Modulations: AM, FM, PM
  • Onboard TCXO for very high frequency accuracy
  • Can be connected to external reference clock for even higher accuracy (female SMA-connector)
  • Onboard CPU and memory for intelligent self-running profiles
  • Stand alone operation (no PC or USB connection required)
  • Battery operation up to 4h
  • USB connector for realtime PC control or for storing programs
  • Incl. 12V power supply for continuous operation
  • Can be operated from 12V Car and Truck power system

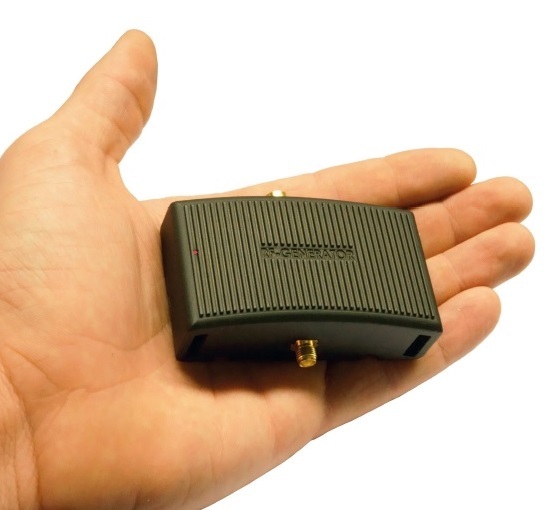

  • Very small form factor, 80x50x30mm only
  • Very lightweight, only 150gr incl. battery





Signal Generator BPSG6



The new signal generator series BPSG from Aaronia offer an unprecedented mix of performance, design and functions, especially in its price category. The extremely high output level of up to +18dBm and the dynamic range of up to 63dB are the strenghts of BPSG6 among others.



The BPSG6 offers to freely adjust the frequency (between 23,5MHz to 6GHz) and power level (-45dBm to +18dBm, 0,5dB steps).



Highlights


World smallest battery powered and intelligent stand alone RF generator up to 6GHz


Generator can be programmed with simple or very complex batch programs which start automatically after every power on (e.g. generate a fixed frequency and level OR start a specific sweep etc. )


Can be used as mini RF frequency and power level calibrator



 Stable frequency generation, thanks to the internal TCXO timebase



Extremely compact and lightweight (150g)

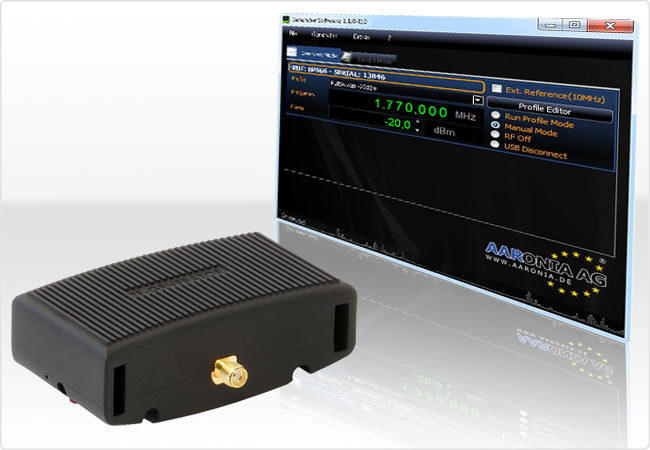

Incl. PC control software



Applications include: attenuation tests, EMC - radiated immunity pre-compliance testing, Generating modulations (AM, FM, PM) wireless communications systems, microwave point to point backhaul radios, Software Defined Radio (SDR), radar, Automated Test Equipment (ATE), sweeping and hopping, Scalar Network Analyzers (SNA), complex waveform electronic warfare (EW), Phase Lock Loop (PLL) Synthesizer Design, Local Oscillator (LO) replacement, hobbyist radio development and many more...

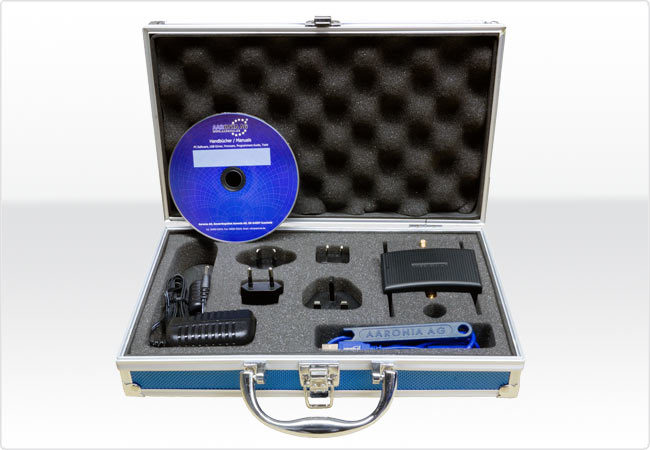

Accesorii standard

  • BPSG6 Signal Generator with integrated battery
  • transport case
  • International Charger/Power Supply
  • SMA Tool
  • SMA to SMA Adapter (female/female)
  • USB-Cable
  • PC Control Software
