AARONIA MDF 9400 Antena magnetica pentru urmarire camp 9kHz..400MHz

Cod: AARONIA MDF 9400




Brosura produs PDF, 0.6 Mb

Descriere

Technical data

  • Compatible with any Spectrum Analyzer brand
  • Design: Loop
  • Frequency Range: 9kHz - 400MHz (1MHz - 40MHz with max. +/- 0,3dB deviation)
  • Max. input level: 5W (usable as transmitting antenna)
  • Conversion factor: 1 (0 dB A/m is 0dBm)
  • Impedance: 50 Ohm
  • RF connector: SMA (female)
  • Temperature range: - 40°C to +60°C
  • Dimensions: (L/W/D): 180 x 180 x 50 mm
  • Weight: 180gr
  • Incl. Pistol grip with mini tripod function
  • Warranty: 10 years



Highlights:

  • Perfect for magnetic field direction finding in combination with Spectrum Analyzers
  • High conversion accuracy allows precise field strength measurements
  • Compact Design and low weight
  • 10 years warranty and manufactured in Germany

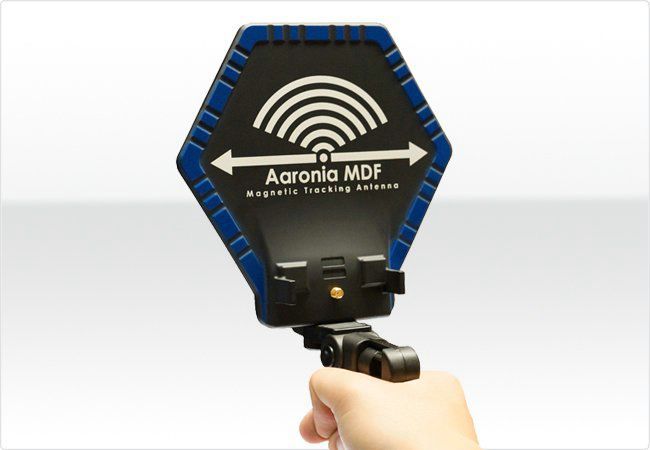

Magnetic Field Tracking Antenna Aaronia MDF 9400



The Aaronia MDF 9400 is a broadband magnetic field tracking antenna, suitable for signal tracking and field strength measurements.

The special conversion factor of the MDF, in conjunction with a Power Meter showing dBm values, gives a direct dBA/m display with correct sign (power meter function).

Thanks to the high directionality of the antenna, the MDF is ideally suited for signal direction finding..



Made in Germany:

All Aaronia antennas are developed, individually produced and calibrated in Germany at the Aaronia factory. This guarantees highest standard so that Aaronia can offer every customer a full 10 years warranty for all MDF antennas.



Optional Accessories:

Each MDF antenna can be equipped with many accessories. More details can be found at above section "Accessories".





Examples for possible analysis and measurements within frequency range (9kHz - 400MHz):



  • Pre-Compliance-Test
  • DSL
  • ADSL
  • VDSL
  • 13,56MHz RFID
  • CB Radio
  • UKW Radio
  • Amateur Radio
  • BOS
  • Tetra
  • etc


Accesorii standard

Included in delivery

  • Aaronia MDF 9400 Antenna
  • Pistol grip with miniature tripod function
