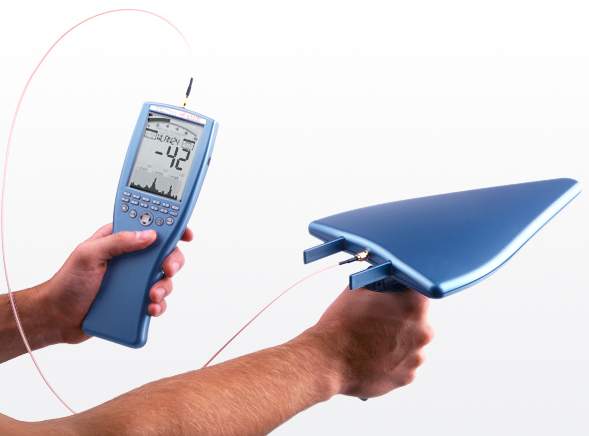

Analizor spectru radio-frecventa 10MHz..6GHz Aaronia Spectran HF6060

Cod: Aaronia Spectran HF6060



Brosura produs PDF, 0.7 Mb

Descriere

  • RF frequency range: 10MHz to 6GHz
  • DANL: -135dBm(1Hz)
  • DANL with Preamp: -150dBm(1Hz)
  • Max. power at RF input: +10dBm
  • Lowest sample time: 10mS
  • Resolution (RBW): 3kHz to 50MHz
  • Units: dBm, dBµV, V/m, A/m, W/m²(dBµV/m, W/cm² etc. via PC software)
  • Detectors: RMS, Min/Max
  • Demodulator: AM, FM
  • Input: 50 Ohm SMA RF-input (f)
  • Accuracy: +/- 2dB (typ.)
  • Interface: USB 2.0/1.1
  • Dimensions (L/W/D): 250x86x27 mm
  • Weight: 430gr
  • Warranty: 10 years



Highlights:

  • RF exposure limit calculation and display according to DIN/VDE 0848
  • Up to 100x faster sample time as V3 units
  • Up to 60dB higher sensitivity as V3 units
  • Low noise preamplifier (option)
  • 14Bit Dual-ADC
  • DDC Hardware-Filter
  • 150 MIPS DSP (CPU)
  • Data Logger (64K), expandable to 1MB (Option 001)
  • Enhanced and much sharper LCD display (compared to V3 units)
  • Simultaneously displays frequency and signal strength
  • Real-time remote control via USB
  • Large, high resolution multifunction LCD
  • Vector (I/Q) measurement
  • DECT & TimeSlot analyzer
  • Real-time RF Peak Power Detector (option)
  • Hold function
  • Included EMC directional antenna HyperLOG 7060
  • Free MAC OS, Linux and Windows analyzersoftware





Examples for possible analysis and measurements within frequency range (10MHz - 6GHz):

  • Radio & TV
  • Tetra/BOS
  • ISM434
  • LTE800
  • ISM868
  • GSM900
  • GSM1800
  • GSM1900
  • DECT
  • UMTS
  • WLAN
  • Microwave
  • Bluetooth
  • WiFi
  • LTE2.6
  • WiMAX
  • Directional Radio
  • 5GHz WLAN
  • etc.


Accesorii standard

  • Portable RF Spectrum Analyzer HF-6060 V4
  • HyperLOG 7060 EMC measurement antenna
  • Pistol grip with mini tripod function
  • 1m SMA cable
  • SMA adapter (m/m)
  • SMA tool
  • SPECTRAN 1300mAh rechargeable battery (integrated)
  • Battery charger and power supply incl. international adapter set
  • Large aluminum carrying case with foam protection
  • Detailed English manual (on CD)
  • Analyzer software for MAC OS, Linux and Windows (on CD)
