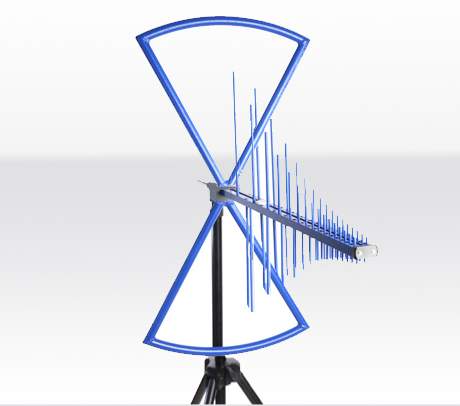

Antena testare EMI & EMC hibrida banda larga 20MHz..3GHz Aaronia HyperLOG 20300

Cod: Aaronia HyperLOG 20300




Brosura produs PDF, 0.7 Mb

Descriere

  • Compatible with any Spectrum Analyzer brand
  • Design: Biconical & Logarithmic-Periodic (combination)
  • Frequency range: 20MHz to 3GHz
  • Max. input power: 310W AM
  • Immunity test field strength:10V/mm
  • Nominal impedance: 50 Ohm
  • Accuracy: 0,3dB
  • VSWR: <2:1 (typ.)
  • Gain: 6dBi (typ.)
  • Antenna factor: See data sheet graph
  • RF connection: N (f) or SMA (see optional adapter)
  • Calibration points: 2970 (1MHz-steps)
  • Dimensions (L/W/D): 1300x1400x650mm
  • Weight: 5,3kg
  • Warranty: 10 years



Highlights:

  • Usable for highly professional EMC/EMI pre-compliance tests
  • Very high accuracy to be used as a reference antenna
  • Suitable for immunity measurements
  •  Includes exhaustive calibration data (on CD)
  • High quality rubber paint for perfect antenna protection
  • Wide bandwidth
  • Very high gain over the total frequency range
  • Coverage of various mobile radio frequency ranges
  • Perfectly suitable for field-strength and EMC measurements due to high precision
  • Can be used in the lab and for open-field application





Examples for possible analysis and measurements within frequency range (20MHz - 3GHz):

  • Highly professional Pre-Compliance-Test even for very low signals
  • Immunity measurements
  • Radio & TV
  • Tetra/BOS
  • ISM434
  • LTE800
  • ISM868
  • GSM900
  • GSM1800
  • GSM1900
  • DECT
  • UMTS
  • WLAN
  • Microwave
  • Bluetooth
  • WiFi
  • LTE2.6
  • etc.





Accesorii standard

  • HyperLOG 20300 EMI test antenna for EMC/EMI tests
  • Typical calibration data with 2970 calibration points (1MHz steps!) on CD
  • Heavy carrying case


Alte produse AARONIA

ANTENA RF BANDA LARGA LOGARITM PERIODICA 680MHZ..8GHZ AARONIA HYPERLOG 6080

• Compatible with any Spectrum Analyzer brand
• Design: Directional Logarithmic-Periodic
• Frequency range: 680MHz to 8GHz
• Max. input power: 50W AM (800MHz)
• Nominal impedance: 50 Ohm
• VSWR: <1:2,5 (typ.)
• Gain: 5dBi (typ.)



ANTENA BICONICA RADIAL-IZOTROPICA BANDA LARGA 30MHZ..1GHZ AARONIA BICOLOG 30100E

• Compatible with any Spectrum Analyzer brand
• Design: Biconical (radial isotropic)
• Frequency range: 30MHz to 1GHz
• Max. input power: 5W AM (100MHz)
• Nominal impedance: 50 Ohm
• Gain: -9dBi (@100MHz)



ANTENA BICONICA TESTARE EMC BANDA LARGA 20MHZ..1GHZ AARONIA BICOLOG 20100E

• Compatible with any Spectrum Analyzer brand
• Design: Biconical (radial isotropic)
• Frequency range: 20MHz to 1GHz
• Max. input power: 5W AM (100MHz)
• Nominal impedance: 50 Ohm
• Gain: -9dBi (@100MHz)



ANTENA YAGI DE MASURA BANDA LARGA DIRECTIVA 700MHZ..4GHZ AARONIA HYPERLOG 7040

• Compatible with any Spectrum Analyzer brand
• Design: Logarithmic-Periodic (LogPer)
• Frequency range: 700MHz to 4GHz
• Max. input power: 50W AM (800MHz)
• Nominal impedance: 50 Ohm
• VSWR: <1:2 (typ.)
• Gain: 4dBi (typ.)



SET ANTENE EMC MASURA CAMP ELECTRIC SI MAGNETIC APROPIAT DC..6GHZ AARONIA PBS1/ PBS2

• Near Field Probes compatible with any Spectrum Analyzer or Measurement Receiver
• Design: Active E & H near field probes
• Frequency range: DC (1Hz) to 6GHz
• Nominal impedance: 50 Ohm
• Preamplifier: UBBV2 (40dB, DC to 8GHz)
• Gain: Diff. Depending on probe (see data sheets)



AARONIA DFG4060 GENERATOR DE CAMP RADIO RF DIRECTIONAL 400MHZ..6GHZ

• Frequency range: 400 MHz to 6 GHz
• Up to 3V/m output power (1m distance)
• Perfect for RF immunity measurements
• Perfect for RF attenuation measurements
• Highest power level: +18dBm
• Smallest power level: -45dBm


ANTENA TESTARE EMI & EMC HIBRIDA BANDA LARGA 20MHZ..3GHZ AARONIA HYPERLOG 20300

• Compatible with any Spectrum Analyzer brand
• Design: Biconical & Logarithmic-Periodic (combination)
• Frequency range: 20MHz to 3GHz
• Max. input power: 310W AM
• Immunity test field strength:10V/mm
• Nominal impedance: 50 Ohm
• Accuracy: 0,3dB
• VSWR: <2:1 (typ.)
• Gain: 6dBi (typ.)



ANTENA ACTIVA BICONICA TESTARE EMC BANDA LARGA 20MHZ..1GHZ AARONIA BICOLOG 20100X

• Compatible with any Spectrum Analyzer brand
• Design: Biconical (biconical dipole)
• Frequency range: 20MHz to 1GHz
• Max. output power: 100mW AM
• Nominal impedance: 50 Ohm
• Gain: -5dBi to 41dBi



AARONIA OMNILOG 90200 ANTENA OMNI-DIRECTIONALA IZOTROPICA 700MHZ..2.5GHZ

• Design: Omni-Directional (radial isotropic)
• Frequency range: 700MHz to 2,5GHz
• Max. input power: 40W AM (800MHz)
• Nominal impedance: 50 Ohm
• Gain: -2Bi to 2dBi (typ.)
• Antenna factor: See data sheet graph
• RF connection: SMA (m) or N (see optional adapter)



ANTENA DE BANDA LARGA DIRECTIVA CASTIG 380MHZ..18GHZ AARONIA HYPERLOG 30180

• Compatible with any Spectrum Analyzer brand
• Design: Directional Logarithmic-Periodic
• Frequency range: 380MHz to 18GHz
• Max. input power: 100W AM (400MHz)
•
• Nominal impedance: 50 Ohm
• VSWR: <1:2,5 (typ.)
• Gain: 5dBi (typ.)
