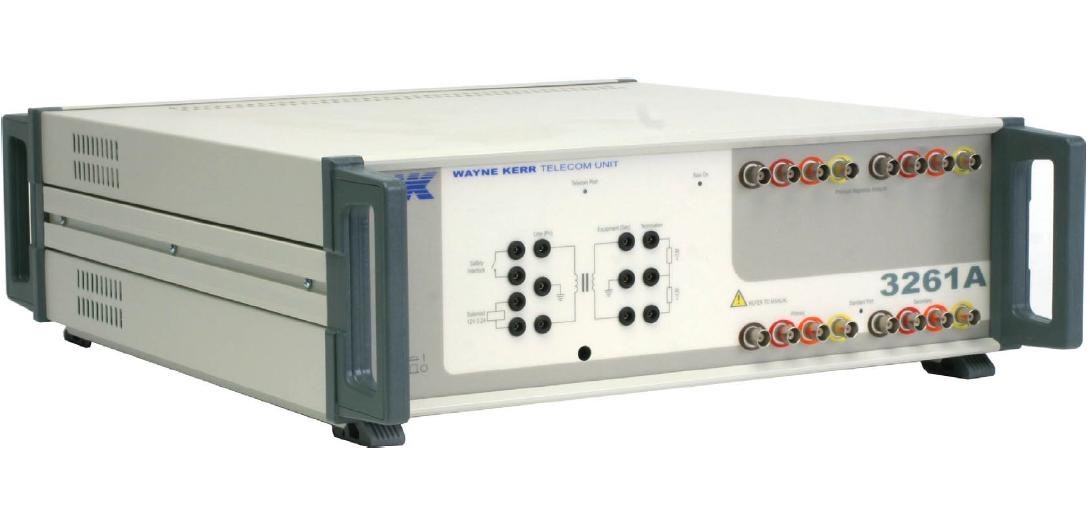

Automatically tests telecom transformers in a production environment
Measures Total Harmonic Distortion, longitudinal and transverse balance, Insertion Loss and Return Loss
Fast, accurate and repeatable automatic measurements
Straightforward intuitive operation
Graph longitudinal and transverse balance, and insertion and return loss against frequency
Suitable for ADSL, HDSL, ISDN, analog line matching transformers and POTS splitters
Accurate DC bias current
Low cost compared to comparable equipment

Accesorii standard

mains lead
user manual
8 BNC and link interconnecting leads (for connection between 3260B and 3261A)
1JBLANK fixture
short circuit trim fixture
HF compensation fixture

Optiuni recomandate

Telecom Fixture		1J1008
Telecom Production Test Software		PT3261
Blank fixture containing PCB and pins allowing the user to adapt the fixture for a specific component.		1JBLANK
Device specific fixture for a customer transformer		1JFIXTURE-01

Alte produse WAYNE KERR

ANALIZOR INDUCTANTA BOBINA TRANSFORMATOR 20 HZ..200 KHZ/ 500 KHZ/ 1 MHZ WAYNE KERR 3200B

• Frequency ranges from 20 Hz to 1MHz
• Fast measurement speed - up to 20 measurements per second
• 0.1% basic accuracy
• Up to 125 A of DC bias current

TESTER CU IMPULSURI BOBINAJ TRANSFORMATOARE WAYNE KERR 7720

• 200 V to 5 kV production testing of manufactured components
• Non-destructive analysis of winding
• One button go / no-go testing
• Multi Winding
• Corona / flutter testing
• 2,4,6 & 8 port versions

TESTER BOBINE TRANSFORMATOARE TELECOM WAYNE KERR 3261A

• Automatically tests telecom transformers in a production environment
• Measures Total Harmonic Distortion, longitudinal and transverse balance, Insertion Loss and Return Loss
• Suitable for ADSL, HDSL, ISDN, analog line matching transformers and POTS splitters
• Accurate DC bias current

ANALIZOR DE IMPEDANTA DE PRECIZIE 20 HZ..120 MHZ WAYNE KERR 6500B

• Precise high frequency impedance measurements
• Characterize components from 20Hz to 120 MHz
• 0.05% basic measurement accuracy
• Comprehensive measurement functions
• Easy to use with large colour TFT touch screen
• Fully programmable over GPIB and LAN
• Keyboard and mouse optional control

ANALIZOR DE MAGNETI SI INDUCTANTE IN TRANSFORMATOARE 20 HZ..3 MHZ WAYNE KERR 3260B

• Wide frequency range of 20 Hz to 3 MHz
• Fast measurement speed - up to 20 measurements per second
• 0.1% basic accuracy
• Up to 125 A of DC bias current
• Telecom measurement functions
• Analysis mode with graphical displays

TESTER CU IMPULSURI BOBINAJ TRANSFORMATOARE WAYNE KERR 7720

TESTER BOBINE TRANSFORMATOARE TELECOM WAYNE KERR 3261A

RLC-METRU DE INALTA FRECVENTA 20 HZ..5/ 10/ 15/ 20/ 30/ 50/ 120 MHZ WAYNE KERR 6500P

• Precise high frequency impedance measurements
• Characterize components from 20Hz to 120 MHz
• 0.05% basic measurement accuracy
• Comprehensive measurement functions
• Easy to use with large TFT touch screen
• Fully programmable over GPIB and LAN
• Keyboard and mouse optional control

ANALIZOR DE PRECIZIE COMPONENTE 20 HZ..500 KHZ/ 3 MHZ WAYNE KERR 6430B/ 6440B

• Fast automatic capacitor testing
• High measurement accuracy on dissipation factor
• Fast measurement speed
• 0.02% basic measurement accuracy
• Characterize components to 3 MHz

ANALIZOR INDUCTANTA BOBINA TRANSFORMATOR 20 HZ..200 KHZ/ 500 KHZ/ 1 MHZ WAYNE KERR 3200B

• Frequency ranges from 20 Hz to 1MHz
• Fast measurement speed - up to 20 measurements per second
• 0.1% basic accuracy
• Up to 125 A of DC bias current
