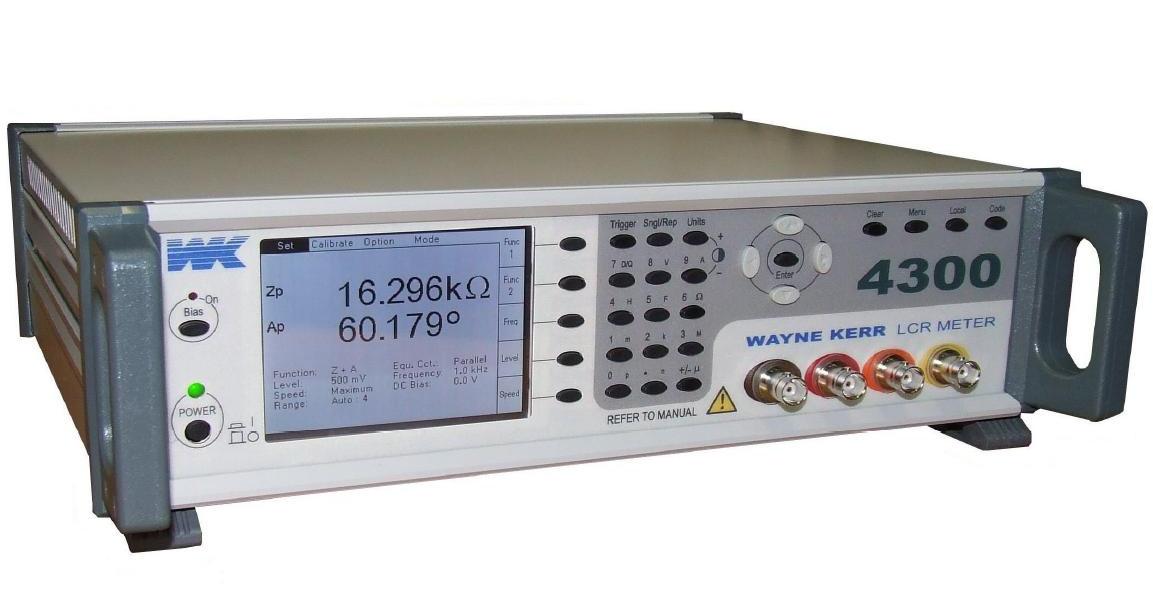

RLC-metru de precizie 20 Hz..100kHz/ 200kHz/ 500kHz/ 1 MHz Wayne Kerr 4300

Cod: Wayne Kerr 4310/ 4320/ 4350/ 43100



Brosura produs 1 PDF, 0.39 Mb

Descriere

4310 (1J4310) LCR Meter (20Hz - 100kHz)

4320 (1J4320) LCR Meter (20Hz - 200kHz)

4350 (1J4350) LCR Meter (20Hz - 500kHz)

43100 (1J43100) LCR Meter (20Hz - 1MHz)

  • Test components from 20Hz to 1 MHz (43100)
  • 0.1% basic accuracy
  • < 25ms measurement time
  • Parameters C, L, Z, Y, X, B, Rac, Rdc, G, Q, D, Ø
  • Single or two test operation
  • Up to four parameters may be displayed (two test mode)
  • Drive level from 10mV to 2Vrms
  • Scale mode with measurement target limits
  • Operator mode with target limits
  • +2V internal or up to ±40Vdc external bias
  • Measurement setup Save and Recall
  • GPIB / IEEE-488, USB, LAN and RS-232 interfaces
  • Handler Scaleizer module (Optional)
  • Binning (Optional)
  • Protection against charged capacitors
  • Small size and light weight


Accesorii standard

  • DC-Resistance
  • 4300 User Manual
  • AC power cord
  • 1EVA40150 Kelvin leads
  • Calibration Certificate


Optiuni recomandate

Options

  • Scaleizer S1 output signal format   add /S1 to part number
  • Scaleizer S2 output signal format  add /S2 to part number
  • Bin handler - non-isolated add /B1 to part number
  • Bin handler - isolated 24V add /B2 to part number



  Only one Option may be specified



Accessories

  • 1J1012 SMD fixture 2 terminal
  • 1J1014 SMD fixture 4 terminal
  • 1EVA40150 Kelvin Leads (fine jaws)
  • 1EVA40180 Kelvin Leads (large jaws)
  • 1EVA40120 SMD Tweezers
  • 1EV1505 4 Terminal Lead Set
  • 1EV1006 BNC to 4-Terminal Component Fixture
  • 1EV1905A SMD Probe Lead
  • 1JCALRES Certificate of Calibration with 4300 test results
