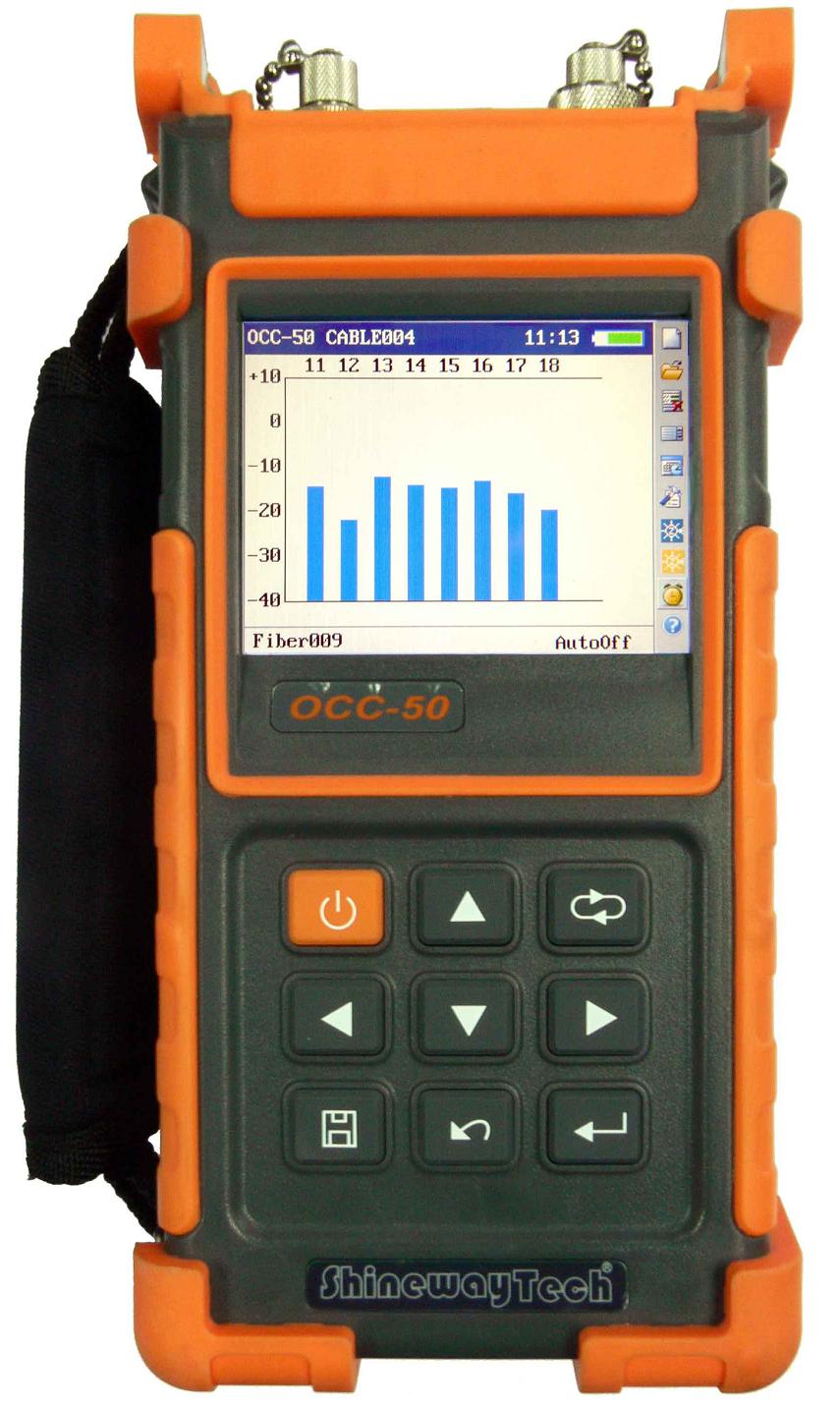

Verificator canale fibra optica CWDM Shineway OCC-50

Cod: Shineway OCC-50




Brosura produs PDF, 0.71 Mb

Descriere

OCC-50A(1471~1611 nm Wavelength, -40~+10 dBm Power Range)

OCC-50A+(1471~1611 nm Wavelength, -50~+10 dBm Power Range)

OCC-50B(1271~1611 nm Wavelength, -40~+10 dBm Power Range)

OCC-50B+(1271~1611 nm Wavelength, -50~+10 dBm Power Range)

  • Clear TFT LCD display (320*240)
  • 8-channel measurement (1471-1611 nm)
  • Result display in histogram and list
  • Applicable to normal optical power measurement
  • Internal clock & fiber S/N editable
  • User definable threshold setting
  • Data Transfer to PC via USB
  • No warm-up, quick start
  • Backlight
  • 10 hours continuous operation
  • Pocketsize, lightweight and easy-to-use
  • CE, FCC certificates


Accesorii standard

  • OCC instrument(embedded rechargeable battery,P/N:AC-BAT-30),
  • FC/PC Connectors(P/N: AC-CONN-FC-L 1pc, AC-CONN-FC-P-300 1pc),
  • US standard AC Adapter(P/N:AC-ADPT-20-US),
  • USB cable(P/N:AC-CABL-USB),
  • OCC Software CD(P/N:AC-CD-OCC),
  • Quick Reference Card(P/N:AC-QRC-OCC),
  • CE Certificate,Warranty Card,Calibration Certificate,
  • Toolkit Soft Bag(P/N:AC-PB-31),
  • Packing Box(P/N:AC-BOX-31).


Optiuni recomandate

  • AC adaptor (AC-ADPT-20-UV)
  • AC adaptor (AC-ADPT-20-AU)
  • AC adaptor (AC-ADPT-20-JP)
  • Connector (AC-CONN-SC-P-300)
  • Connector (AC-CONN-SC-L)
  • Ceramics core for LS(AC-FRL-C)
  • Luxury Toolkit hard Box (AC-PB-40),
  • Optical Connector Cleaning Tape(P/N:AC-CLN-TAPE),
  • Cleaning Stick(P/N:AC-CLN-STK) 2pcs.
