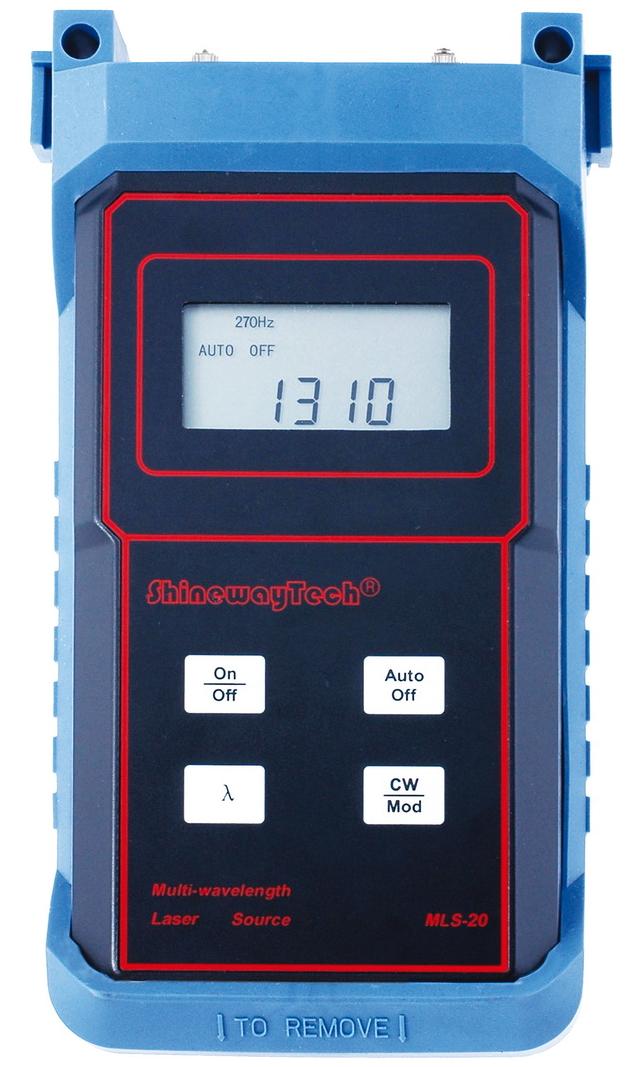

Sursa laser semnal optic Shineway MLS-20

Cod: Shineway MLS-20




Brosura produs PDF, 0.19 Mb

Descriere

MSL-20A(850/1300/1310/1550 nm)

MSL-20B(650/850/1300/1310/1550 nm)

MSL-20C(850/1300/1490/1550 nm)

MSL-20D(850/1300/1310/1550/1625 nm)

MSL-20E(1310/1490/1550/1625 nm)
  • Multi-wavelength selectable: 650/850/1300/1310/1490/1550/1625 nm
  • 650 nm visible laser source  for break and macrobend detection
  • Nearly all kinds of wavelengths in optical network are supported
  • Easy-to-use visible laser source for finding breaks
  • Modulation in CW and modulated frequencies
  • Modulation frequencies in 270,1K, 2KHz  (1Hz@650nm)
  • 1625nm laser source with optical power meter to measure upper limit loss in DWDM
  • Dual-way powering system including a 1600mAh battery and an optional power adapter
  • Low battery annunciator
  • Auto off function conserving battery life
  • CE, FCC, FDA certificates


Accesorii standard

  • MLS instrument(embedded rechargeable battery,P/N:AC-BAT-20),
  • Connector(P/N: AC-CONN-FC-L),
  • Rubber boot(P/N:AC-RB-20A),
  • US standard AC Adapter(P/N:AC-ADPT-20-US),
  • User Manual(P/N:AC-MAN-MLS),
  • CE Certificate,Warranty Card,Calibration Certificate,
  • Simple soft bag(P/N:AC-PB-20),
  • Packing Box(P/N:AC-BOX-20).
