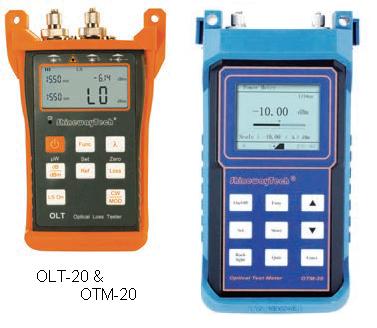

Tester masura pierderi fibra optica cu Power-metru si Sursa Laser integrate Shineway OTL-20/ OTM-20

Cod: Shineway OTL-20/ OTM-20




Brosura produs PDF, 0.66 Mb

Descriere

OLT-20A(1310/1550 nm)

OLT-20B(850/1300 nm)

OLT-20C(1310/1550 nm)

OLT-20D(850/1300 nm)



OTM-20A(1310/1550 nm, 650 nm)

OTM-20B(850/1300 nm, 650 nm)

OTM-20C(1310/1550 nm, 650 nm)

OTM-20D(850/1300 nm, 650 nm)

  • Support quick test, intelligentized operation
  • Graphic interface, large easy to read LCD display
  • Measurement units in dB, dBm and W (or mW)
  • Large memory capacity (4000 measurements)
  • Support auto test of optic fiber loss
  • Draw changing curve of power value
  • Support the optical power alarm function
  • Automatically data storage
  • Damp, dust and shock proof design, ideal for field operation
  • Interchangeable fiber-optic adapters (FC, SC,ST,P/N, E 2000)
  • RS-232 data upload port
  • PC associated software for previously stored data analyzing, graphic drawing and reporting
  • Auto off function conserving battery life
  • Dual-way powering system
  • Low battery indicator
  • CE, FCC, FDA certificates





Accesorii standard

OTM instrument(embedded rechargeable battery,P/N:AC-BAT-20),

  • Connector(P/N: AC-CONN-FC-L, AC-CONN-FC-OTM-P-1000)
  • Rubber boot(P/N:AC-RB-20A),
  • US standard AC Adapter(P/N:AC-ADPT-20-US),
  • RS232 cable(P/N:AC-CABL-RS),
  • OTM Software CD(P/N:AC-CD-OTM),
  • User Manual(P/N:AC-MAN-OTM),
  • CE Certificate,Warranty Card,Calibration Certificate,
  • Simple soft bag(P/N:AC-PB-20),
  • Packing Box(P/N:AC-BOX-20).



OLT instrument

  • Connector(P/N: AC-CONN-FC-L, AC-CONN-FC-P-300),
  • Rubber boot(P/N:AC-RB-10A),
  • Battery (P/N: AC-BAT-10)
  • User Manual(P/N:AC-MAN-OTH),
  • CE Certificate,Warranty Card,Calibration Certificate,
  • Simple soft bag(P/N:AC-PB-10),
  • Packing Box(P/N:AC-BOX-10).
