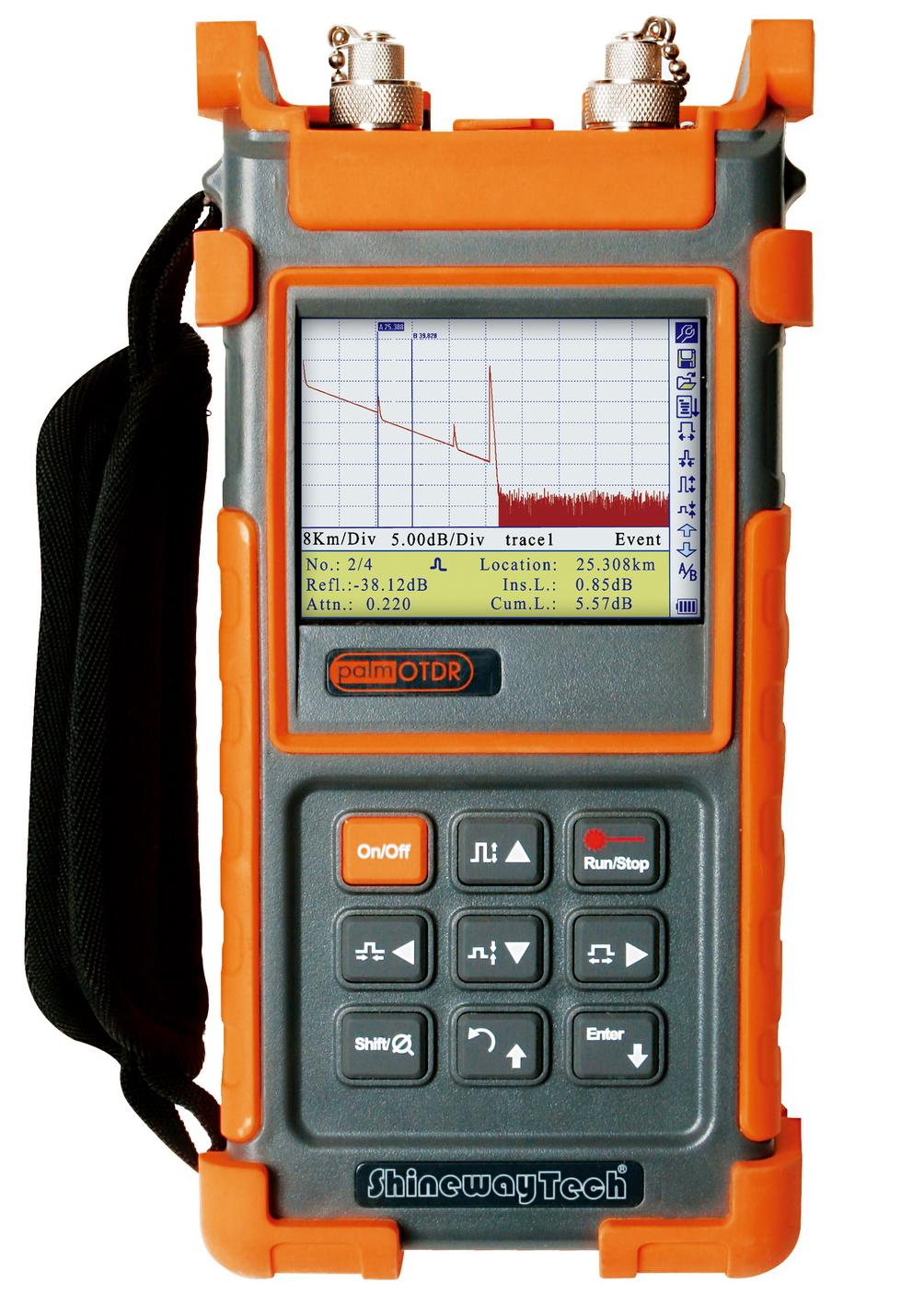

Analizor OTDR fibra optica Shineway palmOTDR

Cod: Shineway palmOTDR




Brosura produs PDF, 0.46 Mb


Descriere

Model

Wavelength (±20nm)

Dynamic Range(dB)

Event Dead Zone(m)

palmOTDR- M20A/N

850/1300

18/22dB

7

palmOTDR- S20A/N

1310/1550

24/24dB

10

palmOTDR- S20B/N

1310/1550

32/32dB

2.5

palmOTDR- S20C/N

1310/1550

38/37dB

2.5

palmOTDR- S20C/N+

1310/1550

45/43dB

2.5

palmOTDR- S16C/N

1625

37dB

1.5

palmOTDR- S20C/P

1310/1490/1550

38/37/37dB

2.5

palmOTDR- S20C/X

1310/1550/1625

38/37/37dB

1.5


  • Ideal for LAN/WAN/FTTx certification & trouble-shooting

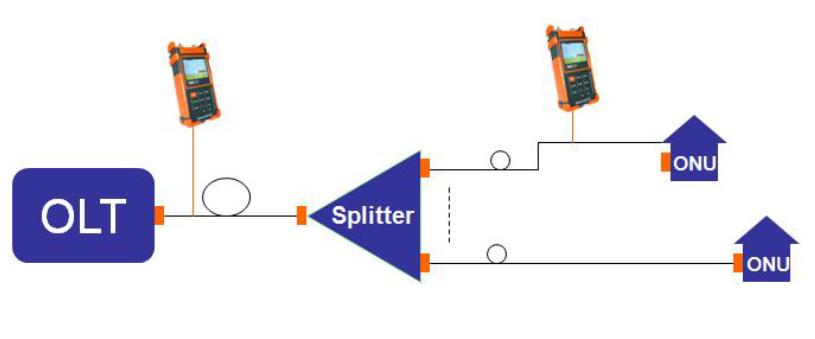

  • FTTx in-service testing/ Testing through =1×64 splitter
  • Splitter & fiber-end identifiable
  • Perfect MMI, handheld & lightweight (only 1kg)
  • Overall fiber applications:
  • SM: 1310/1490/1550/1625nm (with filter), up to 45dB
  • MM: 850/1300nm, 18/22dB
  • Value-added 650nm VFL
  • Quick start: <5 seconds
  • Hotkeys: Easiest operation in the world, push-and-test
  • High precision measurement
  • 1000 test records storage (Type C)
  • USB/RS-232 data interface
  • Bellcore file format (.sor)
  • PC software for traces batch editing & flexible printing
  • Multilanguage: EN/DE/FR/ES/PT/RU/KR/CN
  • 8 hrs continuous operation/20 hrs standby
  • Dust-shock proof (2m drop test)
  • CE, FCC, FDA certificates


Accesorii standard

  • palmOTDR instrument(embedded rechargeable battery,P/N:AC-BAT-30),
  • Optical Connector(P/N: AC-CONN-FC-L2)
  • US standard AC Adapter(P/N:AC-ADPT-20-US),
  • RS232 cable(P/N:AC-CABL-RS),
  • USB cable(P/N:AC-CABL-USB),
  • TraceManager Software CD(P/N:AC-CD-OTDR),
  • User Quick Reference Card
  • CE Certificate
  • Warranty Card
  • Calibration Certificate,
  • Toolkit Soft Bag(P/N:AC-PB-31),
  • Packing Box(P/N:AC-BOX-31).


Optiuni recomandate

  • AC adaptor (AC-ADPT-20-UV)
  • AC adaptor (AC-ADPT-20-AU)
  • AC adaptor (AC-ADPT-20-JP)
  • Connector (AC-CONN-SC-L2)
  • Connector (AC-CONN-ST-L2)
  • Toolkit Soft Bag (AC-PB-30),
  • Luxury Toolkit hard Box (AC-PB-40),
  • Optical Connector Cleaning Tape(P/N:AC-CLN-TAPE),
  • Cleaning Stick(P/N:AC-CLN-STK) 2pcs.
