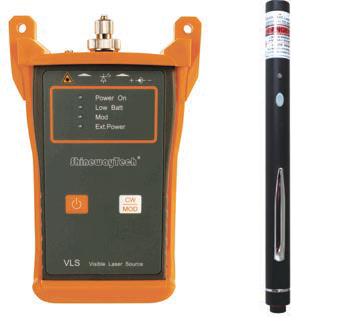

Sursa laser lumina domeniu vizibil Shineway VLP-10/ VLS-20

Cod: Shineway VLP-10/ VLS-20




Brosura produs PDF, 0.35 Mb

Descriere

VLP-10A(650 nm, 5 km Range)

VLP-10B(650 nm, 10 km Range)

VLP-10C(650 nm, 13 km Range)



VLS-20A(650 nm, 5 km Range)

VLS-20B(650 nm, 10 km Range)

VLS-20C(650 nm, 13 km Range)
  • Pocket-size/pen-size, easy to use
  • Fast response, no warm up
  • CW/1 Hz mod
  • 10Km for Max.measurement Range
  • CE, FCC, FDA certificates
  • One meter drop test


Accesorii standard

VLP instrument

  • Packing box
  • AAA Alkaline Battery
  • User Quick Reference Card

VLS instrument

  • Connector(P/N: AC-CONN-FC-L),
  • Rubber boot(P/N:AC-RB-10A),
  • Battery (P/N: AC-BAT-10)
  • User Manual(P/N:AC-MAN-OTH),
  • CE Certificate,Warranty Card,Calibration Certificate,
  • Simple soft bag(P/N:AC-PB-10),
  • Packing Box(P/N:AC-BOX-10).
