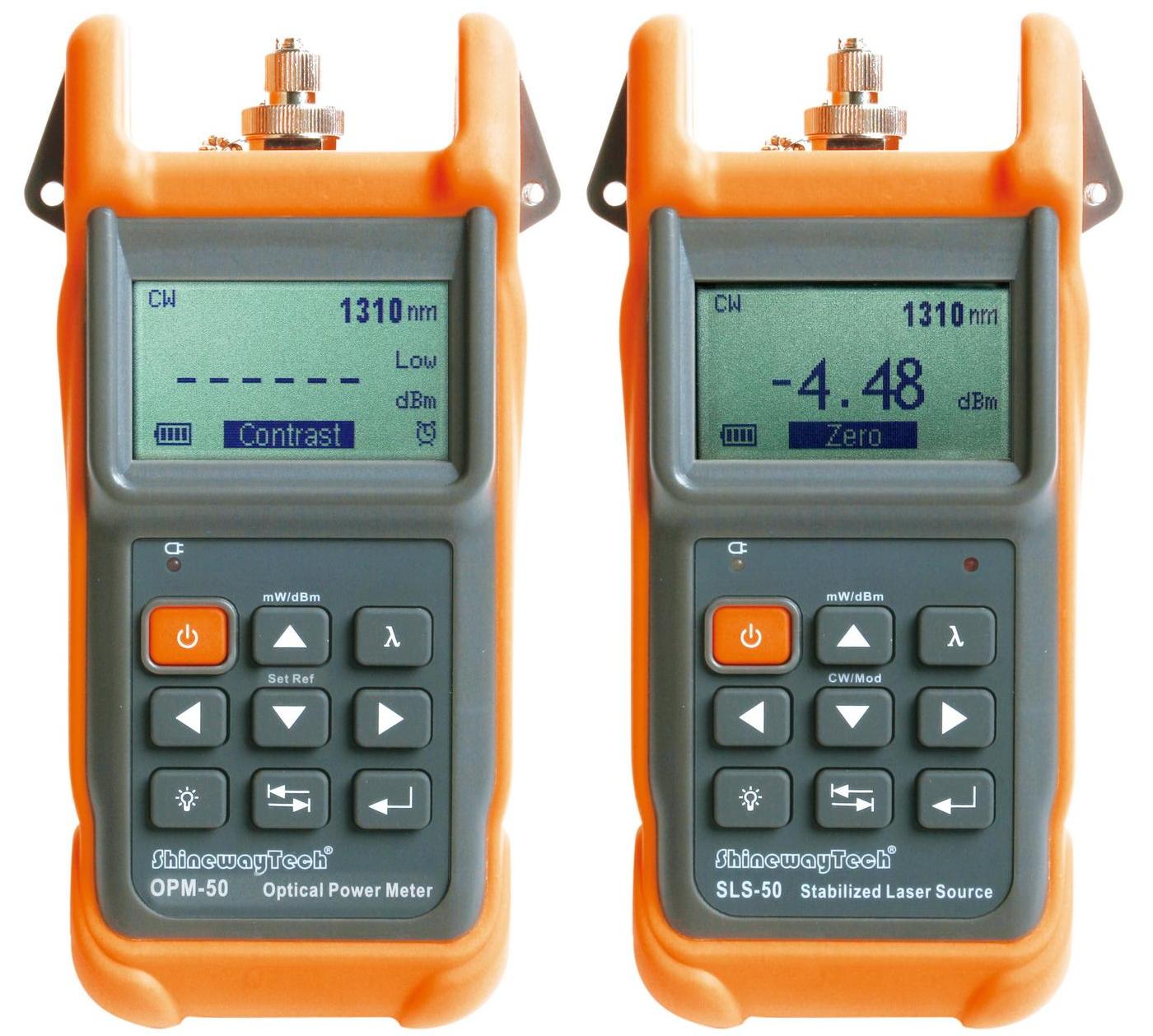

Set Power metru/ Sursa lumina laser masura pierderi fibra optica Shineway OPM-50/ SLS-50

Cod: Shineway OPM-50/ SLS-50




Brosura produs PDF, 0.76 Mb

Descriere

OPM-50 Intelligent Optical Power Meter

OPM-50A(1300/1310/1490/1550/1625 nm, -70~+10 dBm)

OPM-50B(1300/1310/1490/1550/1625 nm, -50~+27 dBm)

  • Automatic Wavelength Identification
  • Remote Reference Value Setting
  • FTTx Applicable
  • Internal Clock & Fiber S/N Editable
  • Memory of 1000 Test Records
  • Data Transfer to PC via USB
  • USB Power Charging
  • No Warm-up, Quick Start
  • Backlight
  • 125 Hours Continuous Operation
  • Pocketsize, Lightweight and Easy-to-use
  • CE/FCC Certificates

SLS-50 Intelligent Stabilized Laser Source

SLS-50A(1310/1550 nm)

SLS-50B(850/1300 nm)

SLS-50P(1310/1490/1550 nm)

SLS-50V(650/1310/1550 nm)

SLS-50X(1310/1550/1625 nm)

  • 6dB Adjustable Power Output Range
  • Automatic Wavelength Identification
  • Remote Reference Value Setting
  • USB Power Charging
  • No Warm-up, Quick Start
  • Backlight
  • Over 70 Hours Continuous Operation
  • Pocketsize, Lightweight and Easy-to-use
  • CE/FCC/FDA Certificates
  • Laser Safety: 21CFR 1040 and IEC 60825-1
  • Class 1 LASER PRODUCT
  • Ideal for optical network installation and maintenance


Accesorii standard

OPM-50 Intelligent Optical Power Meter includes:

  • OPM instrument (embeded rechargeable battery, P/N: AC-BAT-15)
  • Connector (P/N: AC-CONN-FC-P-300),
  • USB cable (P/N: AC-CABL-USB-15),
  • US standard AC Adapter(P/N:AC-ADPT-15-US), used with USB cable,
  • OPM Software CD(P/N:AC-CD-OPM),
  • CE Certificate,Warranty Card,Calibration Certificate, Quick Reference Guide
  • Simple soft bag(P/N:AC-PB-10),
  • Packing Box(P/N:AC-BOX-10).

SLS-50 Intelligent Stabilized Laser Source includes:
  • SLS instrument (embeded rechargeable battery, P/N: AC-BAT-15)
  • Connector (P/N: AC-CONN-FC-L),
  • USB cable (P/N: AC-CABL-USB-15),
  • US standard AC Adapter(P/N:AC-ADPT-15-US), used with USB cable,
  • CE Certificate,Warranty Card,Calibration Certificate, Quick Reference Guide
  • Simple soft bag(P/N:AC-PB-10),
  • Packing Box(P/N:AC-BOX-10).


Optiuni recomandate

  • Connector (AC-CONN-SC-P-300)
  • Connector (AC-CONN-ST-P-300)
  • AC adaptor (AC-ADPT-15-UV)
