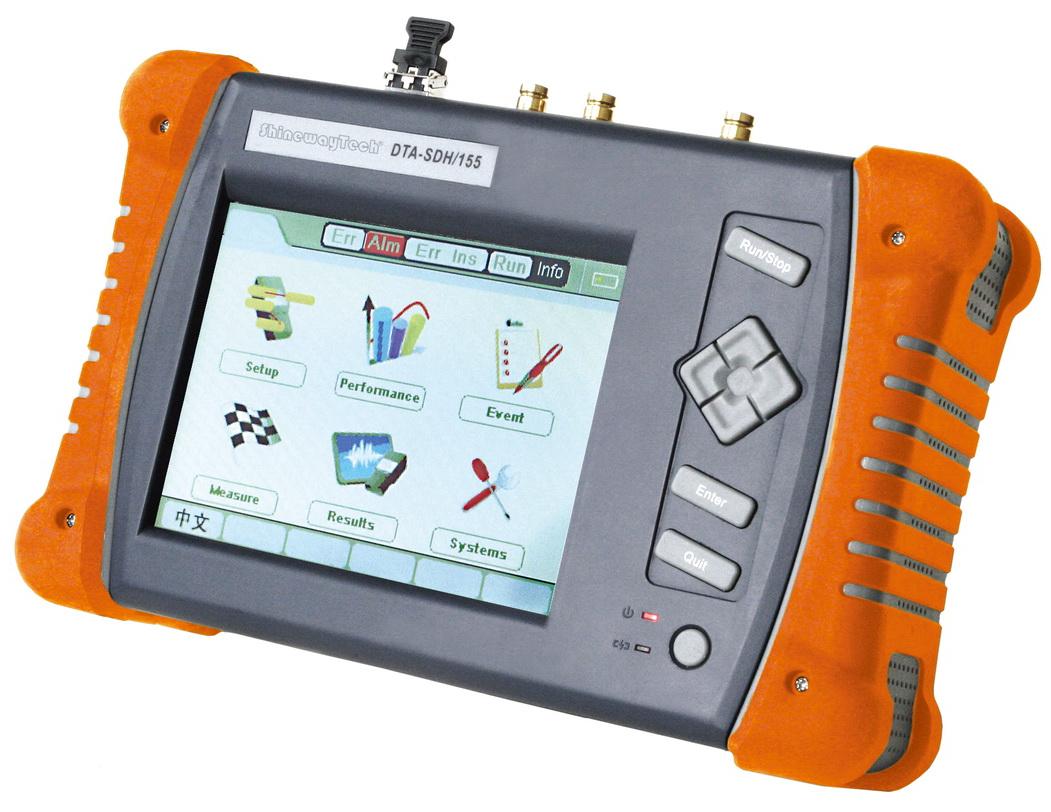

Analizor transmisii date SDH/PDH/STM/E1 Shineway DTA-SDH/155

Cod: Shineway DTA-SDH/155




Brosura produs PDF, 1.52 Mb


Descriere

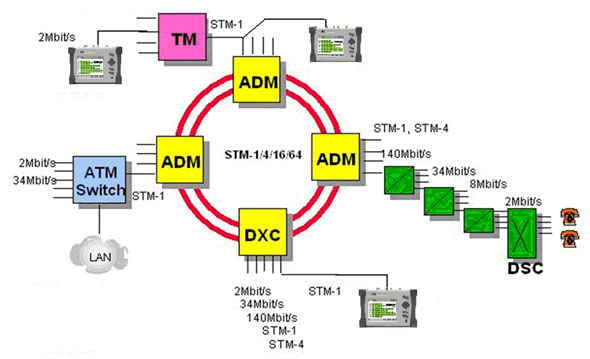

  • Analysis and evaluation of SDH and PDH networks andequipment up to 155Mbps.
  • According to ITU.T G.821, G.826, G.828,G.829, M.2100, M.2101.
  • Tandem Connection Monitoring (TCM) and APid tests.
  • Support pointer adjustment test.
  • Automatic Protection Switching (APS).
  • Round trip delay measurement (STM-1 and E1).
  • Scan VC4, VC3, VC12 tributary signals.
  • Update through USB.
  • Operate by Key-press or touch-screen.


Accesorii standard

        Ref

Item

Product name

Qty

1

Main machine

155M meter (including Li-battery)

1

Instrument handle tape

1

2

Standard parts

Fiber LC-FC (1M)

2

3

Fiber LC-LC (1M)

2

4

USB interface cable (straight-through cable 1M)

1

5

BNC cable (Q9 1M)

2

6

220V-13.8V/3.5A power adapter

1

7

CD

1

8

Operating manual

1

9

Pack

1

10

External packing carton

1

11

Handwriting pen

1
