Detector acustic scurgeri de apa si trasator gaz Seba Hydrolux HL 500 H2
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: Seba-KMT Hydrolux HL500-H2 HL-500-H2




Brosura produs PDF, 1.71 Mb

Descriere

HL 500 H2

The modern DSP technology used together with a 16 bit audio codec provides the user with high audio quality. Background noise is simultaneously minimised. This means that leaks which only produce a quiet sound can also be reliably identified. The Hydrolux is easy to carry even for longer periods of work due to the small housing and low weight. The large back-lit display provides easy reading of the measurement results. Hydrolux is simple to use which makes it a fine companion in your daily search for leaks.

With the modern series of Hydrolux equipment HL 500 H2 and HL 5000 H2, you can find leaks particularly quickly, easily and reliably. The equipment uses modern digital signal processing technology (DSP) to clearly recognise the leak sound, even when there is a lot of noise in the environment. The sounds are not just perceived audibly, but are also displayed graphically using ultra-modern dual segment analysis (DSA) technology. For the user this means more reliability when locating water losses.



Benefits:

  • Unique combination of ground microphone and tracer gas detector
  • Everything included in a set (control unit, ground microphone, H2 sensor)
  • Highest location precision due to visualisation of up to nine measuring points (gas concentration / sound)
  • Highest sensitivity for tracer gas detection





Features of the Hydrolux equipment:

Functions

HL 500 H2

HL 5000 H2

LCD Display

X

X

DSA technology

X

X

Histogram

X

X

Sound logger function

X

X

Software updates

X

X

Frequency analysis



X

Free filter setting



X

Line location mode



X





Accesorii standard

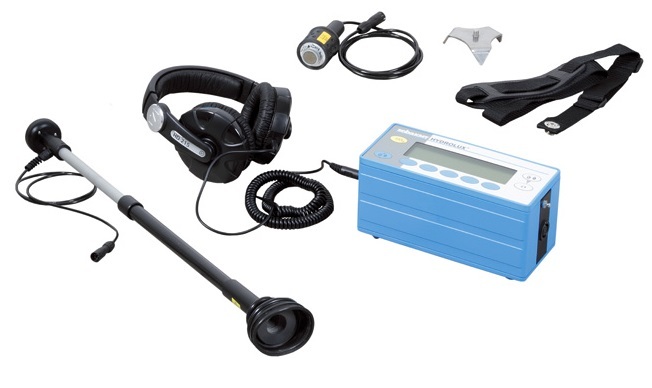

Scope of Delivery (set)

- Leak location equipment / amplifier ?

- Headphones 4

- Equipment case 5

- Carrying belt 6

- Tripod adapter (PAM U-D) 7

- H2 sensor with rod

- Active universal microphone PAM B-2

with magnet and probe tip



Optiuni recomandate

Optional accessories

- Slide valve adapter 20 mm

- Slide valve adapter 42 mm

- Ground microphone

(PAM W-2) 2

- Connection lead VK 65 3

- Extension set for PAM B-2

and PAM T-3 sensor rods

- Carrying rod PAM W-1 / PAM W-2 8

- Carrying rod PAM T-3 9

- Tripod adapter PAM W-2-D
