Receptor pachete IP -> 4 x DVB-ASI Transport Stream Promax DT-324

Cod: Promax DT-312




Brosura produs PDF, 0.24 Mb

Descriere

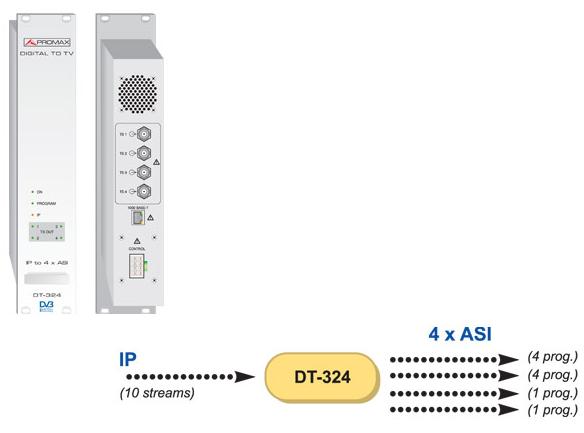

The DT-324 is a IP packet converter to ASI-TS. It extracts information from an Ethernet network and processes and delivers it up to 4 TS-ASI outputs.

The 100/1000 Mbps input must be connected to an IP network carrying MPEG-2 transport stream packets. The module extracts the IP streams from four Transport Streams corresponding to four DVB-ASI outputs available.

It is configured and controlled by means of the control module DT-800.





IP INPUT

Ethernet 100/1000 Mbps. RJ45 connector.

TS OUTPUT

4 x DVB-ASI. BNC Female connector, 75 ?

IP STREAMS
  Communication protocol
  Transmision methode
  Payload


UDP or RTP/UDP communication protocol.
MULTICAST / IGMP Version 2.
From 1 to 7 packets MPEG-2.

CONFIGURATION
AND POWER SUPPLY

Through the DT-800 Control Module in local

(keypad) or remote mode (PC)



Optiuni recomandate

DT-324-M

IP receiver to ASI-TS output (MPTS).

DT-324-S

IP receiver to ASI-TS output (SPTS).


DT-800B

Control unit and power supply.

DT-802

Control unit and redundant power supply modules.

DT-900

Rack and wall mounted structure.

DT-900B

Rack mounted structure.

DT-901

Empty module plates..

DT-902B

Power CAM modules for smart cards..

CC-043

Supply and control cable with 3 connexions for DT-800B (included)

CC-044

Supply and control cable with 4 connexions for DT-800B (included)

CC-143

Supply and control cable with 3 connexions for DT-802 (included)

CC-144

Supply and control cable with 4 connexions for DT-802 (included)

OP-XXX-V

Output in the range 170-650 MHz for modules with DVB-T..

OP-800-P

Option required to use DT-800B with 3 x DT-730 modules

OP-212-D

Dual independent output for DT-212B

OP-504-S

TS-ASI output option for DT-504B
