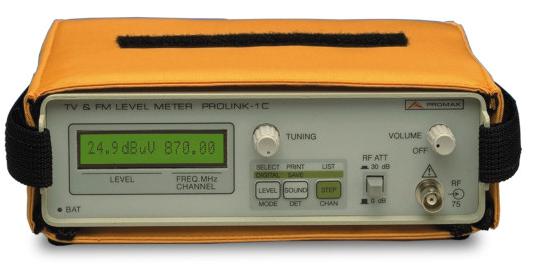

Basic instrument for CATV measurements. Ideal for those applications where Signal Level for analogue and Channel Power for digital are the only measurements needed. It covers frequencies in the range of 46 MHz to 870 MHz and optionally the frequencies between 5 MHz and 48 MHz. Also available there is an option for external supply of microwave link networks.

MEASUREMENTS	Channel Power, Signal Level & V/A
FREQUENCY RANGE	48.25 MHz to 870 MHz (5 - 870 MHz optional)
PC CONNECTION	Remote control software via RS-232C
