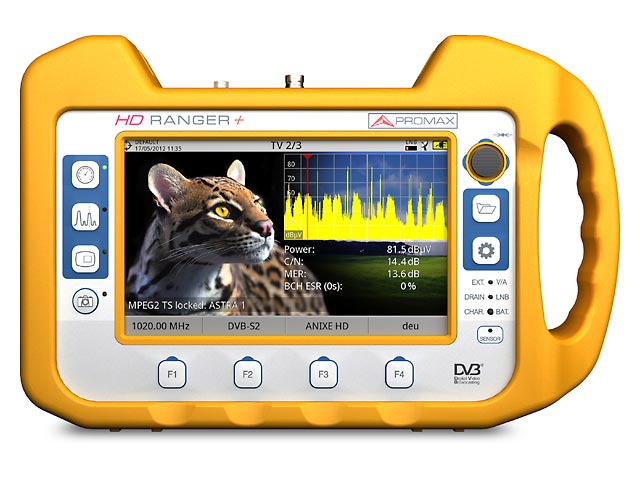

Analizor TV & Satelit DVB-T/T2, DVB-C/C2, DVB-S/S2 Promax HD Ranger+
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: Promax HD Ranger+




Brosura produs PDF, 1.17 Mb

Descriere

The HD RANGER+ is a universal analyser that covers a comprehensive mix of broadcast standards around the globe. The latest developments in broadcast technology such as DVB-T2/C2/S2 (DVB-T/C/S also included) with MPEG-2 as well as MPEG-4 video is managed effortlessly within the product.

One of the most noticeable and stunning features on the new HD RANGER+ product is the ultra fast spectrum analyser. As soon as you use the analyser you will experience this outstanding feature as one of the major changes we have adopted in the new product allowing you to sweep faster and more accurately.

The introduction of the latest technology within the product allows you to display multiple screens either overlapped together or in a split screen format.



DVB STANDARDS

DVB-T/T2, DVB-C/C2, DVB-S/S2

DOLBY DIGITAL PLUS

Included

OPTICAL MEASUREMENTS

Optional

3 GHz BAND EXTENDER

Optional



Accesorii standard

  • RCA to multipole jack adaptor cable for Video and Left/Right audio
  • USB Cable (A) Female to Mini USB (A) Male
  • Car lighter charger
  • External DC charger
  • Mains cord
  • Case
  • Transport belt and small accessory bag
  • Transport suitcase
  • F adapters: F/H to BNC/H, F/H to DIN/H, F/H to F/H


Optiuni recomandate

OPTICAL MEASUREMENTS Optional

3 GHz BAND EXTENDER Optional
