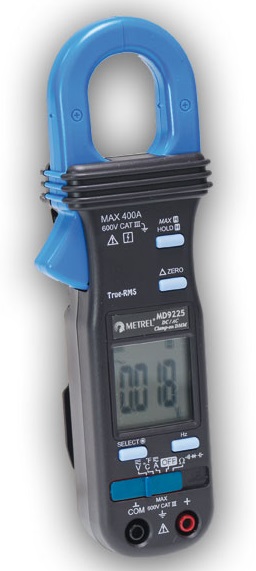

The MD 9225 is a versatile current clamp meter with perfect combination of size and built-in functions. It measures AC/DC current and voltage, capacitance, temperature, full range resistance and captures In-rush current. Display with large easy-to-read figures and one-handed operation make MD 9225 an extremely easy-to-use. This compact instrument combines a high level of functionality, small size and portability. All built-in features make MD 9225 a perfect tool for advanced applications.

TEST FUNCTIONS

TRMS AC, DC voltage measurement;
TRMS AC, DC current measurement;
Capacitance measurement;
Resistance measurement;
Diode test;
Frequency measurement;
Continuity test (acoustic signaling);
Temperature measurement.

TECHNICAL DATA

Dimensions (w x h x l): 63 x 40 x 188 mm

Mass (without accessories): 218 g

Accesorii standard

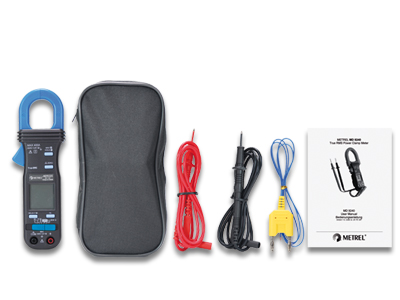

MD 9225 Standard set

Current clamp MD 9225
Test lead with probe, 2 pcs
Thermocouple probe, type K
Pouch
1.5 V battery, type AAA, 2 pcs
Instruction manual
Warranty
