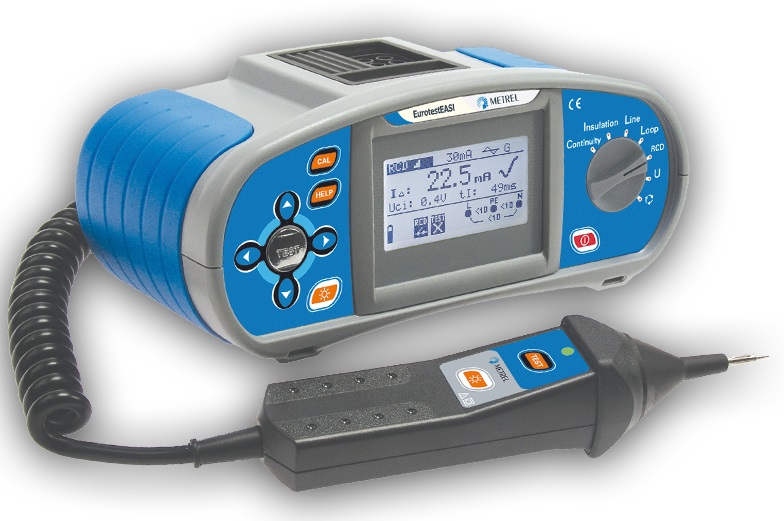

EurotestEASI is the first member of a new line of Metrel�s installation safety testers. Lightweight design and small dimensions make it ideal for prolonged use over a working day.

MEASURING FUNCTIONS

DC insulation resistance,
PE conductor continuity test,
Line and Loop resistances with Fuse characteristics inside the instrument,
RCD test with Trip lock function,
phase sequence in 3-phase systems,
on-line voltage monitor.

OTHER FEATURES

Fast and reliable Loop resistance measurement without RCD tripping.
Built-in Fuse characteristics database for quick evaluation of measuring results at ZLINE measurement.
On-line voltage monitor shows voltage levels for L-L, L-N and L-PE during the measurement.
TN/TT/IT Multi System support
Multi-functional tip commander for faster execution of a measuring sequence.
Rechargeable battery pack with a charger is included in a standard set.

TECHNICAL DATA

Dimensions (w x h x l): 230 x 103 x 115 mm

Mass (without accessories): 1.3 kg

Accesorii standard

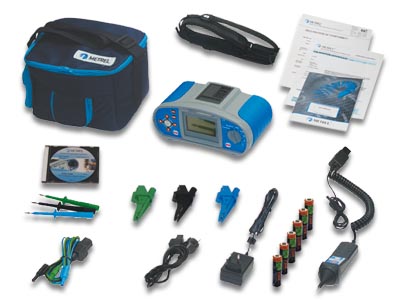

MI 3100 Standard set MI 3100

Instrument EurotestEASI
Tip commander, 1.5 m
Schuko-plug test cable
Test lead, 3 x 1.5 m
Power supply adapter + 6 NiMH rechargeable batteries, type AA
Test probe, 3 pcs (blue, black, green)
Crocodile clip, 3 pcs (blue, black, green)
Soft carrying neck belt
Soft carrying bag
Short Instruction manual
Instruction manual on CD
Handbook on CD
Calibration certificate
