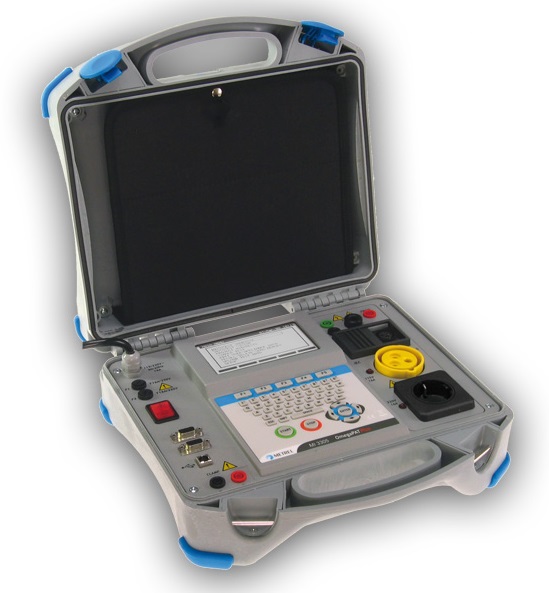

The innovative MI 3305 OmegaGT Plus is a highclass instrument intended for electrical safety testing of a wide range of portable electrical appliances, IT equipment, IEC cords and portable RCDs according to IEC/EN and VDE standards.

MEASURING FUNCTIONS

Continuity tests (200 mA, 4 A, 10 A, 25 A).
Insulation resistance.
Substitute leakage current.
Differential leakage current.
Touch leakage current.
IEC cord polarity test.
Leakage and load TRMS current measurement with current clamp.
Portable RCD testing.
HV Flash test.
Functional test.

OTHER FEATURES

Autosequencing: 24 pre-set autosequences and custom prepared autosequences speed up testing and ensure that no tests are missed.
Automated: automatic testing and PASS / FAIL evaluation of test results according to appropriate standard.
Project uploading: previous test data can be uploaded for fast retesting of the appliance.
Scan and test: optional barcoding sys-tem and PASS / FAIL barcode label printing make retesting quick and simple.
RFID: support for advanced RFID identification system.
Adaptable: tests both 230 V and 115 V appliances.
User friendly: large LCD screen, full QWERTY keyboard, help screens and warnings make the instrument an extremely easy to use.
Multitasking: instrument performs continuity tests with different test currents, 250 V and 500 V insulation tests, differential /substitute / touch leakage mesure-ments, functioanal and polarity tests.
Flash test: dielectic strength test after repair safety testing.
PRCD testing: instrument enables measurement of tripout time of portable RCDs.
Clamp leakage current measurement: quick measurement of leakage current with current clamps directly on power supply cable without discon-nection of appliance from mains.
Trend functionality: test results can be uploaded from PC to the instrument for comparison between old and new test results onsite.
Downloadable: up to 6500 test results with measuring parameters can be stored in two level memory and downloaded to the PC with the help of PC SW PAT Link PRO.
PC SW PAT Link PRO included in the standard set enables downloading, viewing, printing of test results and exporting of data to spreadsheet applications.
PC SW PAT Link PRO Plus enables advanced analysis of test results, data upload to the instrument for on site comparison of old and new results and creation of professional test reports.

SOFTWARE

PC SW PAT Link PRO included in the standard set enables downloading, view-ing, printing of test results and exporting of data to spreadsheet applications.
PC SW PAT Link PRO Plus enables ad-vanced analysis of test results, data upload to the instrument for on site comparison of old and new results and creation of professional test reports.

TECHNICAL DATA

Dimensions (w x h x l): 335 x 160 x 335 mm

Mass (without accessories): 8.4 kg

Accesorii standard

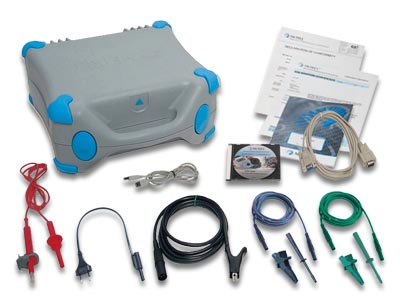

MI 3305 Standard set MI 3305

Instrument OmegaGT Plus
Continuity / Leakage cable
PRCD cable
Flash cable
PC SW PATLink PRO
RS232 cable
USB cable
Crocodile clip, green
Crocodile clip, black
Test probe, green
Test probe, black
Test lead, green 1.5 m
Test lead, black 1.5 m
Instruction manual
Calibration certificate
