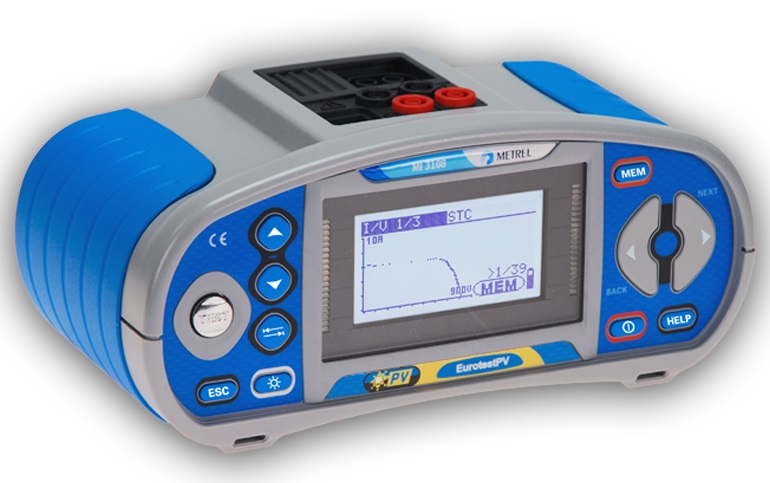

MI 3108 EurotestPV is a combined photovoltaic tester and electrical installations safety tester. It enables complete testing of electrical installations according to EN 61557 standards and in addition performs all necessary tests required on single-phase photovoltaic (PV) installations. This includes all of the tests as required by EN 62446, but also includes I - U characteristic, Calculation of STC values and power measurements on Inverter’s DC and AC sides. The unit is designed for the demanding working conditions (up to 1000 V, with 15 A DC). To greatly improve user safety the MI 3108 EurotestPV comes with the PV Safety Probe which ensures safe disconnection every time.

MEASURING FUNCTIONS

Photovoltaic installations:

Measurements on DC side of PV installation:

Voltage, current, power, energy;
Uoc (Open Circuit Voltage) and Isc (Short Circuit Current);
I - U curve of PV modules and strings;
Irradiance;
Module temperature.

Measurements on AC side of PV installation (power quality):

Voltage, current, frequency, power, PF, energy, harmonics;
Efficiency of PV module, inverter, PV system calculation.

Electrical installations:

Insulation resistance;
Continuity of PE conductors;
Line impedance;
Loop impedance (sub-functions with high current and without RCD tripping);
RCD testing (type AC, A and B);
Earth resistance;
AC current (load and leakage);
TRMS voltage, frequency, phase sequence;
Power, energy, harmonics.

OTHER FEATURES

Photovoltaic installations:

Calculation of STC values;
Efficiency calculations;
Graphical representation of module’s I - U curve;
2 voltage & 2 current channels for simultaneous AC & DC parameters measurements;
Optional PV Remote Unit for simultaneous measurements of solar irradiation and temperature of PV module.

Electrical installations:

Automated RCD testing procedure;
Support for B type RCD;
Earth resistance measurement;
Built-in fuse tables for automatic evaluation of the line / loop impedance results;
Online monitoring of all 3 voltages;
Scope function;
Loop impedance test without tripping the RCD;
1-phase power and energy measurements (including harmonics up to 11th).

SOFTWARE

PC SW EuroLink PRO is a strong creating tool of professional Visual Inspection Report and Testing Result Report.

TECHNICAL DATA

Dimensions (w x h x l): 230 x 103 x 115 mm.
Mass (without accessories): 1.3 kg.

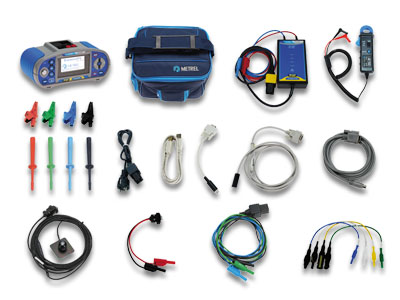

Accesorii standard

MI 3108 Standard set MI 3108 ST

Instrument MI 3108 EurotestPV
Soft carrying bag, 2 pcs
Schuko-plug test cable
Test lead, 3 x 1.5 m
Test probe, 4 pcs (red, green, blue, black)
Crocodile clip, 3 pcs (red, green, blue, black)
PV Safety Probe
PV MC3/4 male/female adapters
AC/DC current clamp
Pyranometer
Temperature probe
Power supply adapter + 6 NiMH batteries, type AA
USB and RS232 - PS/2 cable
PC SW EuroLink PRO
Set of carrying straps
Short instruction manual
Instruction manual and handbook on CD
Calibration certificate

MI 3108 Pro set MI 3108 PS

Instrument MI 3108 EurotestPV
EurotestPV Remote
Tip commander
Soft carrying bag, 2 pcs
Schuko-plug test cable
Test lead, 3 x 1.5 m
Test probe, 4 pcs (red, green, blue, black)
Crocodile clip, 3 pcs (red, green, blue, black)
PV Safety Probe
PV MC3/4 male/female adapters
AC/DC current clamp
Pyranometer
Temperature probe
Power supply adapter + 6 NiMH batteries, type AA
USB and RS232 - PS/2 cable
PC SW EuroLink PRO
Set of carrying straps
Short instruction manual
Instruction manual and handbook on CD
Calibration certificate
Set of carrying straps
Short instruction manual
Instruction manual and handbook on CD
Calibration certificate
