• Simple operation.
• AUTO set up for instant use.
• Ultra fast pulse for near end fault identification.
• Trace HOLD feature to allow comparison between cables.
• IP54 rating offers real life working.
• Designed for use on all metallic cable pairs.

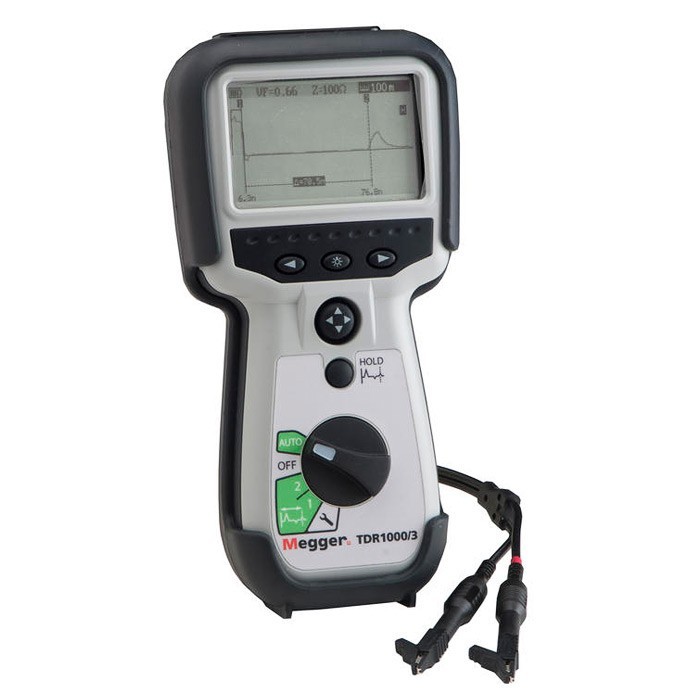

The TDR1000/3 is a hand held, compact Time Domain Reflectometer for locating faults on metallic cables. It has a minimum resolution of 0.1 m and a 5 km maximum range depending on velocity factor selected and cable type.

Four output impedances are available (25, 50, 75, and 100 O) and a velocity factor between 0.2 and 0.99 will meet any cable test requirements.

Accesorii standard

Time Domain Reflectometer TDR1000/3

Included accessories

Hard carry case 5410-420

Miniature clip test lead set 6231-652

User guide CD 2002-178

Optional accessories

Fused test lead set 1002-015
