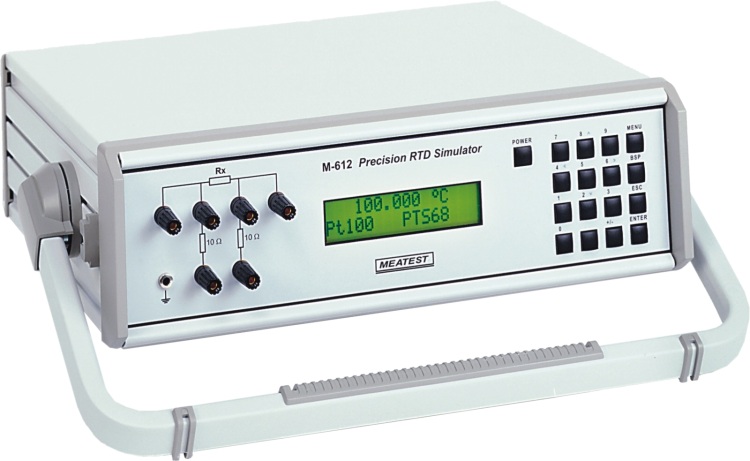

Simulator RTD senzori temperatura Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000 Meatest M612

Cod: Meatest M612




Brosura produs PDF, 0.19 Mb

Descriere

  • Calibration of temperature controllers
  • Resistance range from 16 O to 10 kO
  • Simulation of Pt and Ni sensors
  • Accuracy +/- 0.02°C
  • Temperature stability < 1 ppm/°C
  • Simulation of cable resistances
  • Interface RS 232 (IEEE488 optionally)



Description

RTD simulator is aimed for calibrating of temperature controllers. It is suitable for calibration laboratories and service centers, where it can be used also as computer controlled resistance decade.
The instrument is supplied from accumulator or via power line adapter. The Control is possible manually or remotely via serial interface RS232 (IEEE488). RTD simulator can be ordered as 19" module for easy assembling into a 19" rack. Module height is 3HE.



Accesorii standard

  • Precision RTD Simulator M612
  • Power line adapter
  • Cable RS 232 (for RS232 basic version only)
  • Application software
  • User’s manual


Optiuni recomandate

Ordering information - options

Bus M612-V1xxx - RS232

M612-V2xxx - IEEE488

Additional functions M612-Vx0xx - none

M612-Vx1xx - Short / Open

Housing M612-Vxx0x - table version

M612-Vxx1x - module 19", 3HE
