Resistance standards MTE series are air standards with high accuarcy and low temperature coefficient. Their are designed for use in cal labs as reference means of resistance quantity saving and for calibration of multimeters and RCL meters. Low time constant involves to use the standards in wide frequency range.

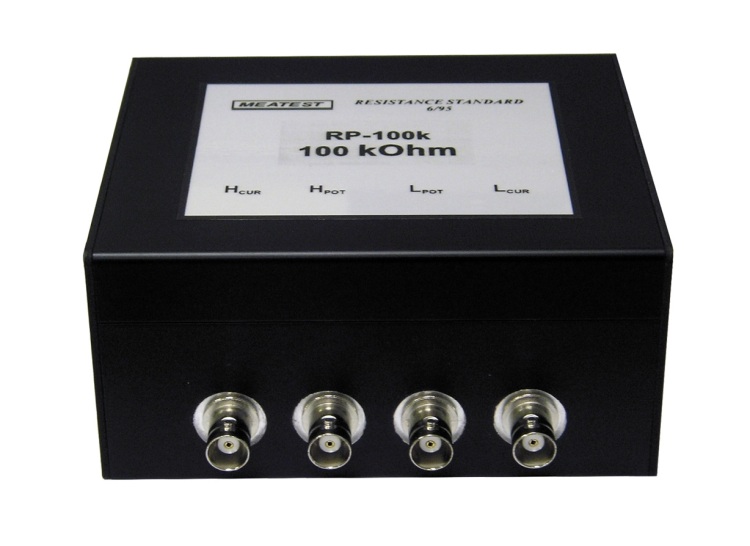

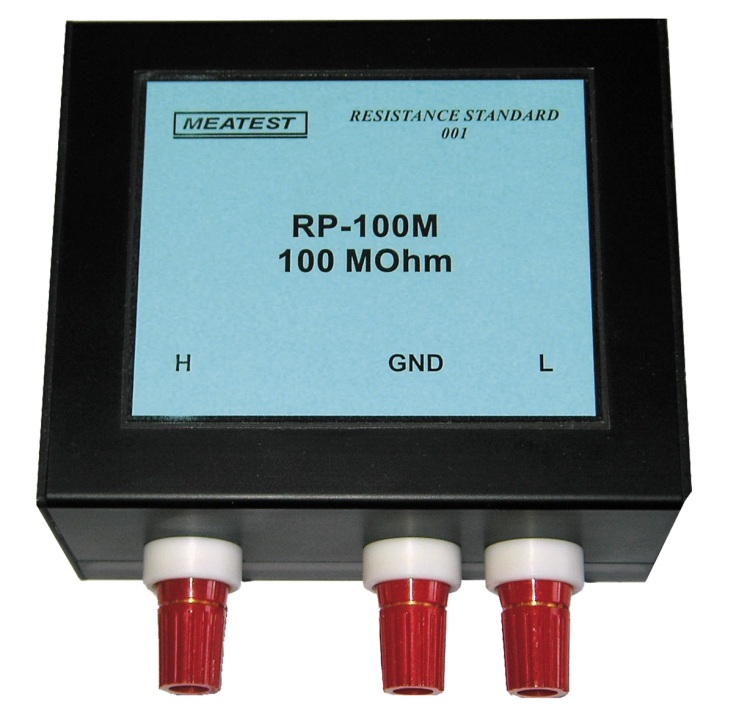

According to customer request the standards are equipped with gold plated instrument terminals or with BNC coaxial connectors with possibility of three- and four- terminals or four-pair terminals connection. In high resistance standards terminals with ceramic isolation are used.

Optiuni recomandate

LP � 100m

LP � 1H

LP � 10H

LP � 100H

LP � 1000H

CP � 10p 10 pF 2 0.1 15 £0.001 Ceramic multilayer Silver mica

CP � 100p 1 00 pF 0.1 0.05 15 £0.001 Ceramic multilayer Silver mica

CP � 1n 1 000 pF 0.1 0.02 15 £0.0005 Ceramic multilayer Silver mica

CP � 10n 10 000 pF 0.1 0.02 15 £0.0005 Ceramic multilayer Silver mica

CP � 100n 100 000 pF 0.1 0.02 15 £0.0005 Ceramic multilayer Silver mica

CP � 1u 1 uF 0.1 0.02 50 £0.0005 Polypropylen B

CP � 10u 10 uF 0.2 0.1 50 £0.005 Polypropylen B

CP � 100u 100 uF

RP - 0.1 100 mW 0.1 0.05 10 3 Foil resistor B

RP - 1.0 1 W 0.05 0.01 10 3 Foil resistor B

RP - 1.0 1 W 0.05 0.01 1 3 Foil resistor C

RP - 10 10 W 0.01 0.005 1 0.3 Foil resistor C

RP - 100 100 W 0.01 0.005 1 0.3 Foil resistor C

RP - 1k 1 kW 0.01 0.005 1 0.3 Foil resistor C

RP - 10k 10 kW 0.01 0.005 1 50 V *** Foil resistor C

RP - 100k 100 kW 0.01 0.005 1 150 V *** Foil resistor C

RP - 1M 1 MW 0.01 0.005 1 500 V *** Foil resistor B

RP - 10M 10MW 0.05 0.01 100 2 500 V*** Ceramic resistor A

RP - 100M 100 MW 0.5 0.1 100 2 500 V*** Ceramic resistor A

RP � 1G 1 GW 1 0.3 100 5 000 V*** Ceramic resistor A

RP � 10G 10 GW 3 0.5 100 5 000 V*** Ceramic resistor A
