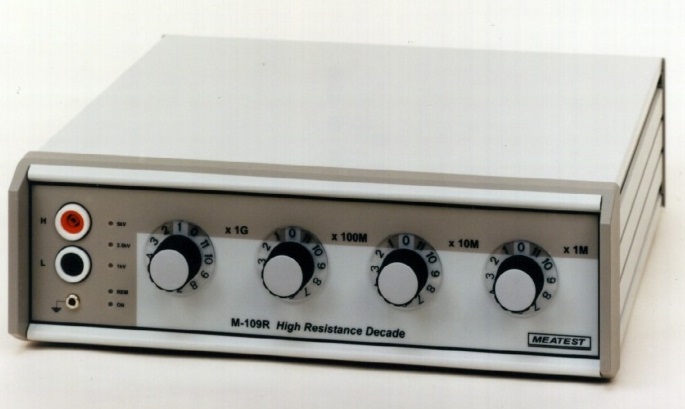

Decada rezistiva calibrare megohmmetre si testere izolatie 5kV Meatest M109R

Cod: Meatest M109R




Brosura produs PDF, 0.2 Mb

Descriere

  • Calibration of insulation meters and megaohm meters
  • Four decades
  • Resistance range 1 MO - 12 GO
  • Accuracy from 0.1 % to 1 %
  • Maximum working voltage 5 kVdc
  • Internal battery / power line adapter supplying
  • RS232 bus



Description

High resistance decade box is aimed for calibrating of insulation meters and megaohm-meters. It is suitable for calibration laboratories and service centres, where can be used also for testing or setting of high resistance meters. High voltage relays with extremely high insulation resistance are used for switching of resistance components.



M109R is equipped with indication of input terminal overload. Instrument is supplied from internal accumulator or power line adapter. Control is possible manually or remotely via serial interface RS232.



Decade box can be ordered as 19" module for easy assembling into a 19" rack. Module height is 3HE.



Accesorii standard

  • High resistance decade M - 109R
  • Power line adapter
  • Cable RS-232
  • Software
  • User’s manual
