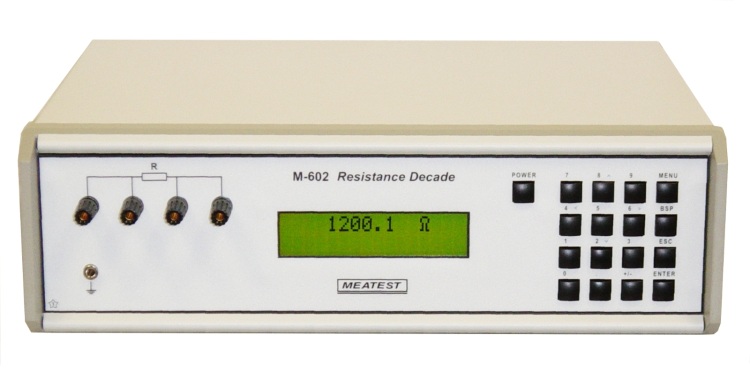

Decada rezistiva programabila Meatest M602

Cod: Meatest M602

Brosura produs

PDF, 0.12 Mb

Descriere

Resistance range from 0.1 O to 10 MO with accuracy 0.02 %
Temperature coefficient < 25 ppm/°C
Max. load 2 W (120 V and 0.6 A)
RTD (Pt, Ni) simulation with accuracy 0.2 °C
Power supplying from power line adaptor or from internal battery
Interface RS232 (IEEE488 optionally)
Table version (19" module as option)

Description

Model M602 is low-cost programmable resistance decade box with range from 10 O to 300 kO (0.1 O to 10 MO in M602A version). Basic accuracy is 0.02 %. Build-in software contains function of RTD temperature sensor simulation with parameters according to IEC (DIN) or US standards, temperature setting in degree of Celsius or Fahrenheit. Decade is supplied from internal accumulator or from external power line adapter. Models both with RS-232 interface and IEEE488 bus are available.

Resistance decade is determined for calibration laboratories for ohmmeter and multimetr testing and for industry as device for quality testing as well.

Accesorii standard

M-602/602A Programmable Resistance Decade
Power line adaptor
RS-232 cable
Demo application program
Operation manual

Optiuni recomandate

Interface M602-V1xxx - RS232

M602-V2xxx - IEEE488

Short/Open M602-Vx0xx - without

M602-Vx1xx - with Short/Open positions

Housing M602-Vxx0x - table version

M602-Vxx1x - module 19", 3HE

M602-Vxx2x - table version with holder

Power supplying M602-Vxxx0 - power line adaptor

M602-Vxxx1 - battery + power line adaptor
