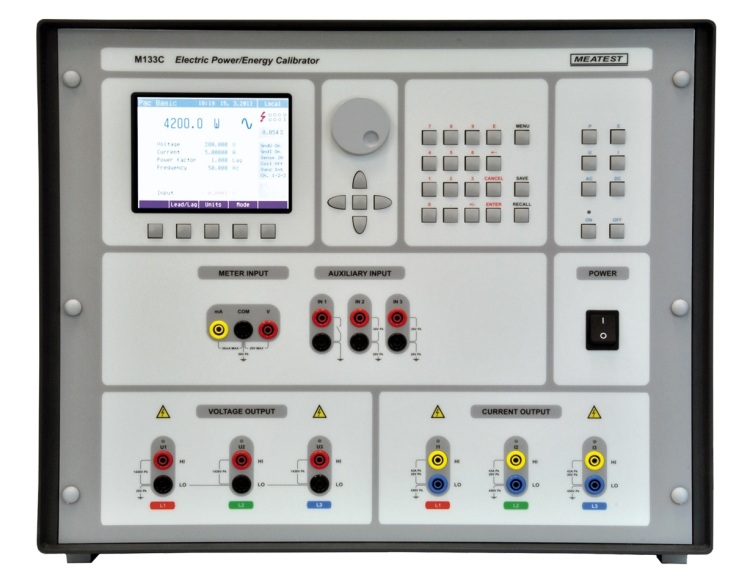

Model M133Ci is compact one-housing three phase electric power/energy calibrator. It can supply unit under test with one phase accurate AC voltage and current with calibrated phase shift or DC voltage and current. Output voltage can be set in six ranges up to 600 V and output current in six ranges up to 30 A. Simulated electric power can be set independently in each phase. Frequency can be set in range from 15 Hz to 1 kHz with resolution 0.001 Hz to 0.01 Hz. Calibrator is equipped with 5 1/2 digital DC meter with DC ranges 20 mA or 10 V for direct calibrating of various types of power transducers.

Using supplied cable adapter the current outputs can be joined together offering one phase current range to 90 A AC/DC.

M133Ci offers only SIN wave output signals. Harmonics, interharmonics, modulation and dip/swell modes are not available in this model.

Accesorii standard

Power supply cable 1 pc
Operation manual, CD 1 pc
Option 10 Test cable banana-banana 1000V - 32 A, black 3 pcs Length 1m
Option 11 Test cable banana-banana 1000V - 32 A, red 3 pcs Length 1m
Option 12 Test cable banana-banana 1000V - 32 A, blue 3 pcs Length 1m
Option 13 Test cable banana-banana 1000V - 32 A, yellow 3 pcs Length 1m
Spare fuse 1 pc
RS 232 cable 1 pc Length 1.5m
M133C-01 High Current Adapter 1 pc

Optiuni recomandate

Option 140-50 Current coil 25/50 turns For clamp ammeters
Option 10 Test cable banana-banana 1000V - 32 A, black Length 1m
Option 11 Test cable banana-banana 1000V - 32 A, red Length 1m
Option 12 Test cable banana-banana 1000V - 32 A, blue Length 1m
Option 13 Test cable banana-banana 1000V - 32 A, yellow Length 1m
GPIB cable GPIB interface cable Length 1 m
RS-232 cable RS-232 interface cable Length 1.5 m
POWER Application SW. Transducers calibration
