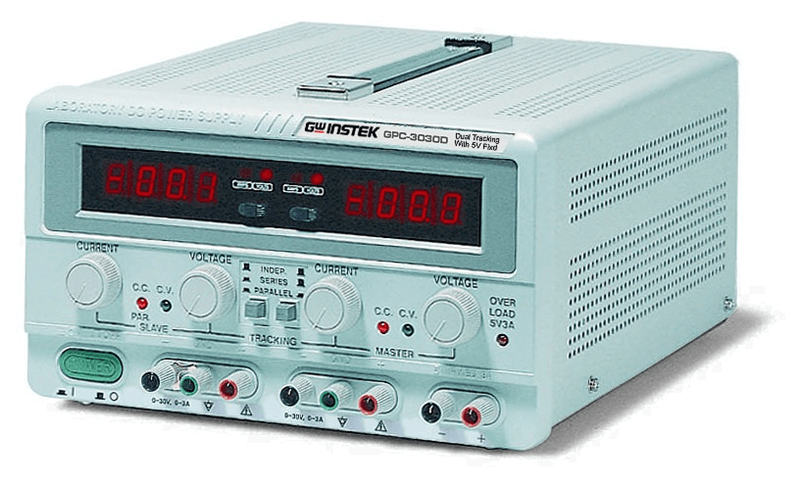

GOODWILL INSTEK GPC-Series

Cod: GOODWILL INSTEK GPC-Series




Brosura produs PDF, 0.21 Mb


Descriere

The GPC-Series are triple output, 195 to 375W, linear DC power supplies. Channel 1 and 2 are fully adjustable (model dependant) and Channel 3 is fixed at 5V/3A with ripple and noise at less than 2mVrms. Overload and reverse polarity protection keep GPC-Series and its loads safe from unexpected conditions.The GPC-3030DQ contains a temperature controlled cooling fan for thermal protection.The GPC features continuous or dynamic internal load selection and serial or parallel tracking for application flexibility.The GPC-Series is an ideal solution for inexpensive bench-top applications requiring low noise and multiple outputs.



Features:

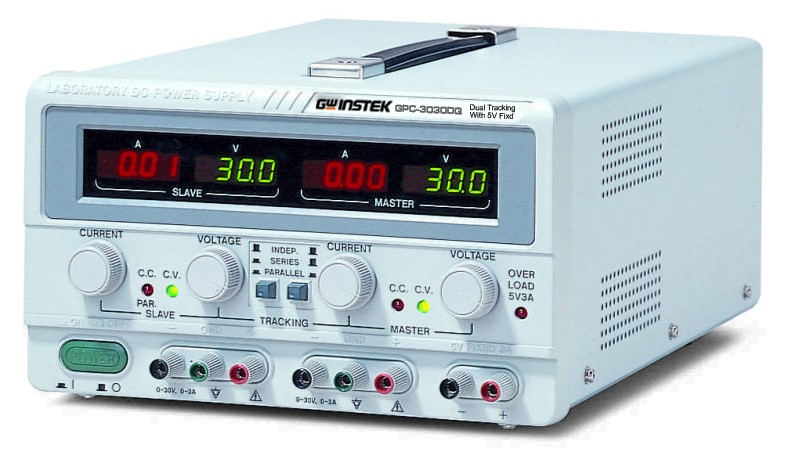

  • Four Digital Panel Meters (GPC-3030DQ)
  • Triple Output
  • Auto Tracking
  • Auto Series and Parallel Operation
  • Constant Voltage and Constant Current Operation
  • Low Ripple and Noise
  • Internal Select for Continuous or Dynamic Load
  • Overload and Reverse Polarity Protection
  • 3 1/2 Digits 0.39" LED Display(GPC-3030DQ)
  • 3 1/2 Digits 0.5" LED Display(GPC-1850D/3030D/3060D/6030D)
  • 5V, 3A Fixed Output
  • (Note: GPC-3060D/6030D are not CE approved)
