GOODWILL INSTEK GDM-400 & GDM-300

Cod: GOODWILL INSTEK GDM-400 & GDM-300




Brosura produs PDF, 1.39 Mb


Descriere

The GDM-300/400 Series Hand Held DMM are a compact, high precision, battery operated multimeter series designed to meet most of the daily needs for design engineers as well as service engineers. The GDM-300/400 series design is driven by mobile-oriented features, such as automatic power down to preserve battery life, a large backlight display for crisp viewing, a rotary selector switch and clear-cut push buttons to ease operation. The basic functions match the depth of bench-top multimeters: fuse-protected current input, true RMS for accurate AC measurements, Auto ranging, Duty cycle, and Relative mode. These compact, reliable, and economical devices are ideal for any engineer.



Features:

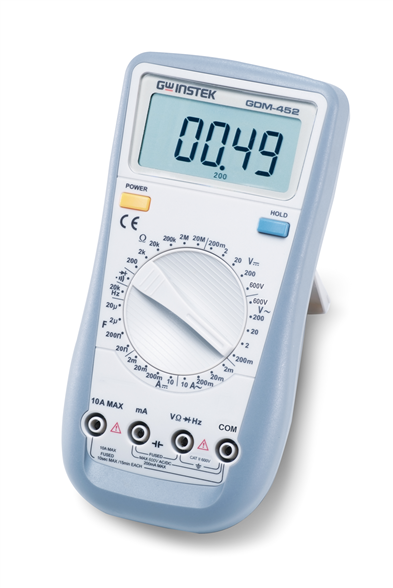

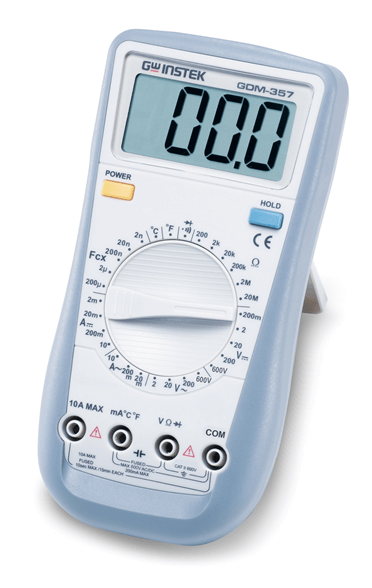

  • 4 1/2 Digits 19999 counts (GDM-452), 3 1/2 Digits 1999 counts (GDM-357/350B)
  • Manual Ranging, Continuity Beeper/Diode Test, Data Hold

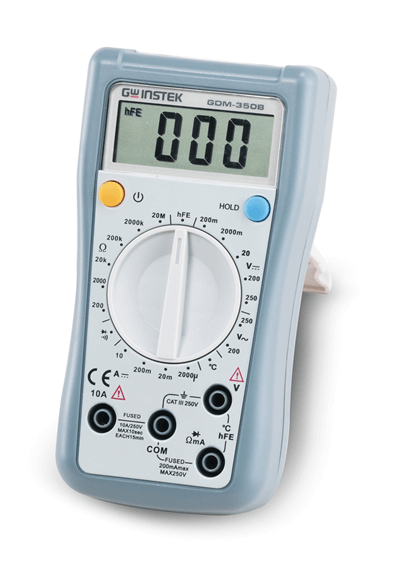

  • hFE Test (GDM-350B)
  • Temperature Measurement (GDM-357/350B)
  • Capacitance (GDM-452/357)
  • Frequency Measurement (GDM-452)
  • < >

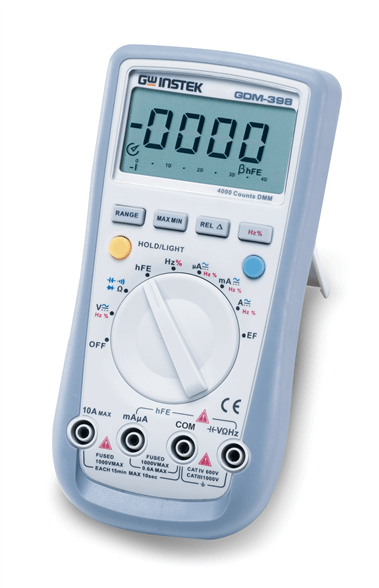

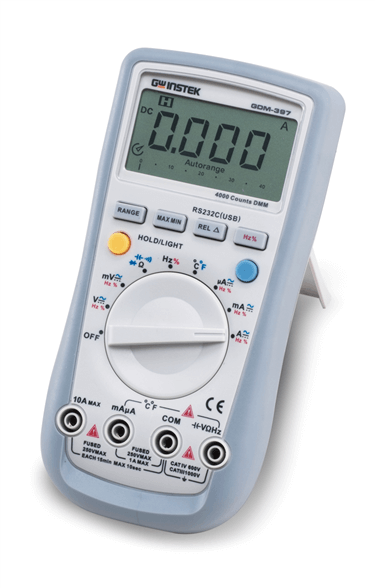

  • 4000 Counts Auto/Manual Ranging (GDM-397/398)

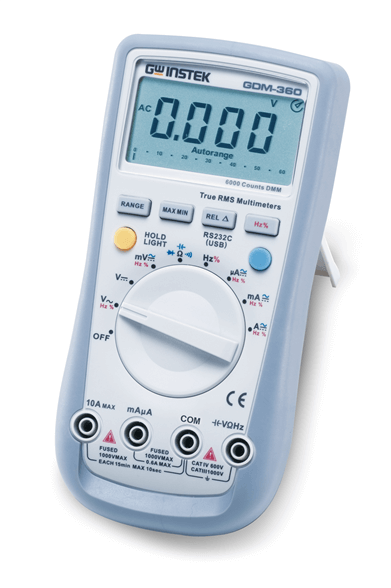

  • 6000 Counts Auto/Manual Ranging (GDM-360)
  • Capacitance, Frequency Measurement
  • Continuity Beeper/Diode Test
  • High Energy Fuse for 10A Range
  • Data Hold/Relative Mode

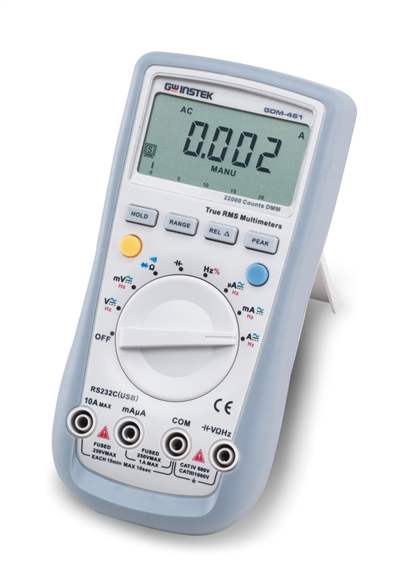

  • True RMS (GDM-461/360)
  • RS232C (GDM-461/397/360)
