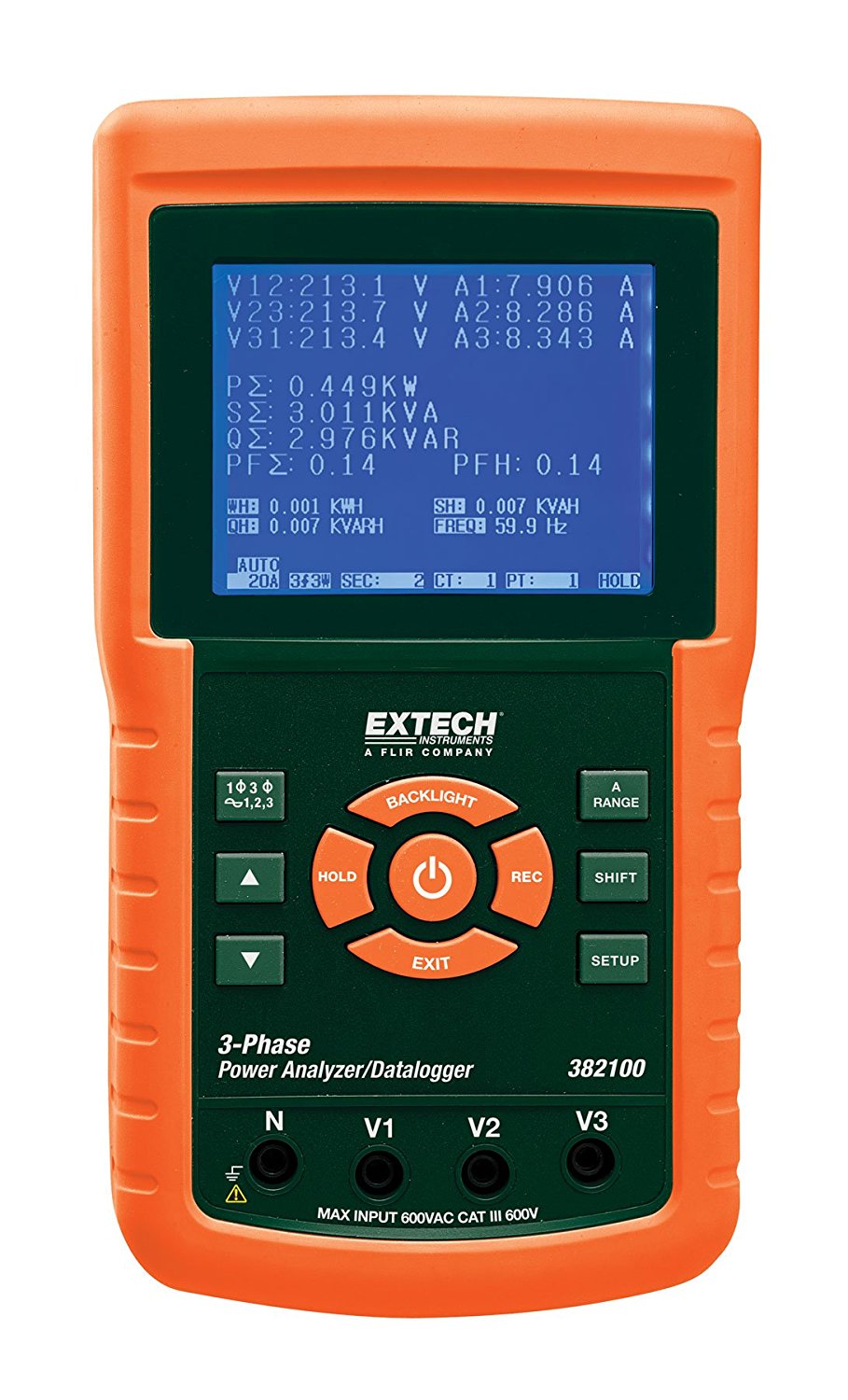

Extech 382100 Analizor putere 3 faze 1200A si Datalogger

Cod: Extech 382100




Brosura produs PDF, 0.32 Mb


Descriere

Datalogging Power Analyzer (up to 30,000 sets of measurements)

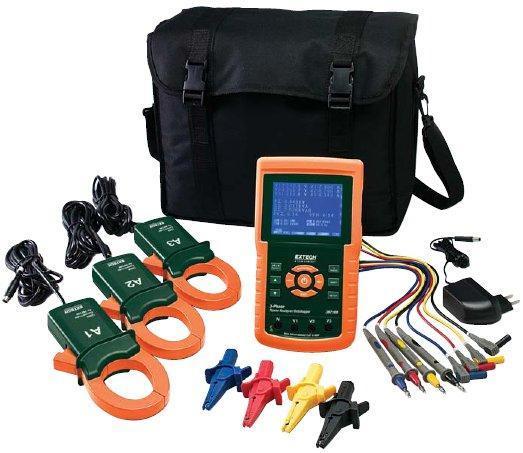

The 382100 is a 3-Phase Power Analyzer/Datalogger that saves data (up to 30,000 sets of measurements) on an SD card in Excel format for easy transfer to your PC. It provides a full system analysis with up to 35 parameters including: V (phase-to-phase), V (phase-to-ground) - A (phase-to-ground), KW / KVA / KVAR / PF (phase), KW / KVA / KVAR / PF (system), KWH / KVAH / KVARH / PFH (system), and Phase Angle. Readings are displayed on a large, dot matrix, sun-readable, backlit LCD. Comes with three current clamps, four voltage leads with alligator clips, eight AA batteries, SD memory card, Universal AC adapter (100 to 240V), case, and user manual.





Features:

  • Single phase, 3-phase/3-wire or 3-phase/4-wire systems
  • Large backlighting LCD displays 35 parameters simultaneously (MW, kVAR, MVA, PF plus the voltage and current of the 3 phases)
  • Displays Active Power (kW), Apparent Power (kVA), Reactive Power (kVAR) and Power Factor
  • Current measurements to 1200A and Voltage measurements to 600V
  • MWH, MVAh, MVARh energy measurements
  • Adjustable CT ratio (1 to 600) and PT ratio (1 to 1000)
  • Automatically logs up to 30,000 sets of measurements with 2GB SD memory card
  • User-programmable sampling time from 2 to 7200 seconds
