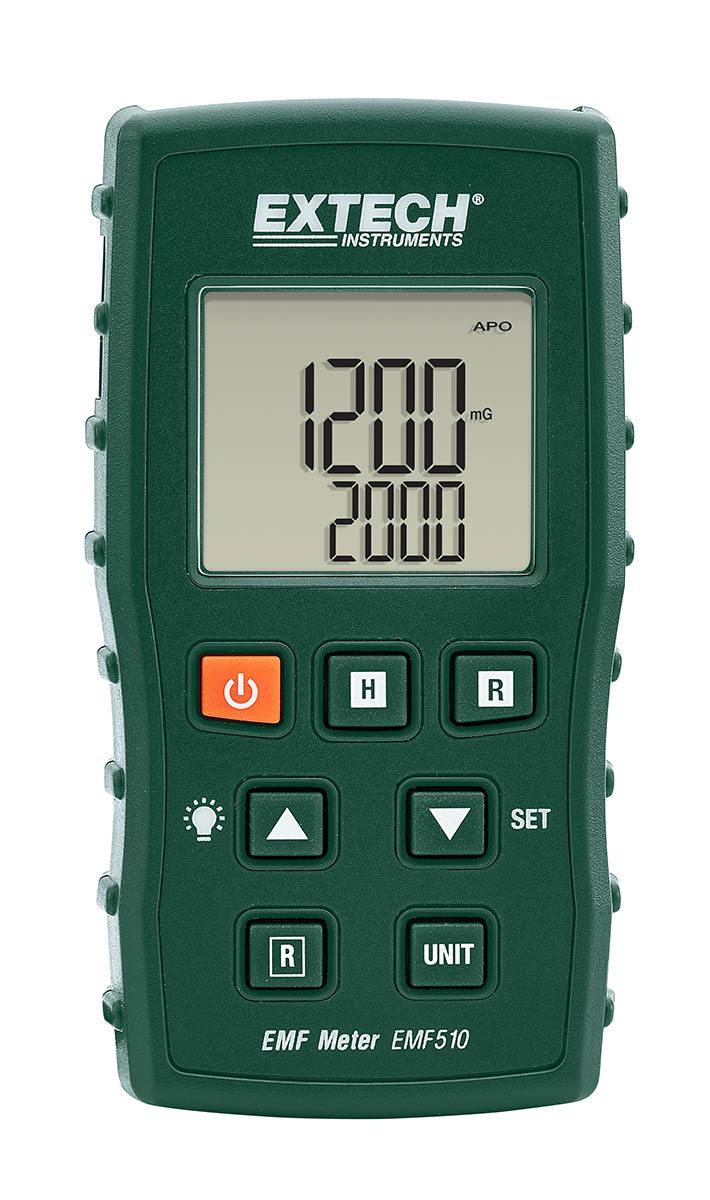

Extech EMF510 Multimetru radiatii electrice magnetice

Cod: Extech EMF510




Brosura produs PDF, 0.19 Mb

Descriere

High-Sensitivity EMF/ELF Meter with Built-in Single-Axis Sensor

The Extech EMF510 measures energy from electromagnetic fields (EMF) and electrical signals and is sensitive to extremely low frequency levels (ELF). The built-in single-axis sensor is ideal for monitoring power lines, electrical appliances, fans and blowers, and electrical circuits in two ranges with milli-Gauss and micro-Tesla units. The EMF510 features a large backlit LCD for viewing in dimly lit areas, an ergonomic compact design with wrist strap, auto power off, and Min/Max function.



·         Measure EMF/ELF levels in milliGauss (mG) or microTesla (µT) up to 2000mG (200µT) with two ranges to choose from

·         Built-in single axis sensor provides basic accuracy reading of ±5%

·         30 to 300Hz bandwidth

·         Backlit display to view in dimly lit areas

·         Data Hold and Min/Max functions

·         Auto power off with disable

·         Tripod mount (optional TR100 Tripod sold separately)

·         Complete with wrist strap and 3 AAA batteries
